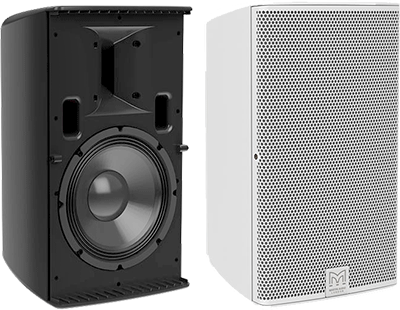

Promising ‘a seamless sonic transition within a multi-zoned complex using larger systems such as CDD or BlacklineX’, Martin Audio’s new A80T is designed for background and foreground systems.
Loaded with an 8-inch (203mm) LF driver and a 1-inch (25mm) polymer dome HF compression driver on a 90° x 50° horn, the A80T handles 200W AES, 800W peak and can produce 120dB peak output at 1m. It has a smooth frequency response and strong bass reproduction that extends down to 63Hz.
With a nominal impedance of 8Ω, multiple loudspeakers can be driven in parallel from a single channel of a low-impedance amplifier, such as the Martin Audio VIA2502 or VIA5004, maximising efficiency and minimising cost. A80T also incorporates a high-quality transformer for 70V/100V line operation, with transformer taps selected by a rotary switch. For full bandwidth protection, the low and high frequency sections are individually protected against overload.
Available in black or white as standard, it can be readily painted to match any décor and can be wall-mounted vertically or horizontally using the supplied WB6/8 bracket.
For general outdoor use, the A80T cabinet only requires an additional waterproof connector cover to be IP54 compliant. The VIA2502 or VIA5004 (or VIA5002 for 70V/100V line) in combination with a Martin Audio DX0.4 or DX0.6 controller are suitable partners for small-scale efficient installations. Combining these amplifiers with the DX4.0 controller will address larger more complex installations managed by Marin Audio’s VU-Net control software.
The Martin Audio SX112 subwoofer will extend the bandwidth of A80T for foreground music applications requiring increased impact and low frequency performance.
Key features:
- Contemporary, unobtrusive design.
- High output capability.
- 70V/100V line transformer.
- Low and high-frequency overload protection.
- Vertical or horizontal orientation.
- 90° x 50° coverage.
- IP54 with optional waterproof connector cover.
