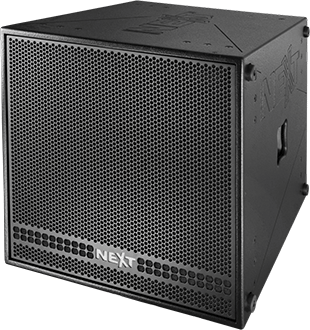

The Next-proaudio PXH95 is a mid-high addition to the PX system range, offering high SPL, reliability, aesthetic design and high sound fidelity for portable applications as well as small concerts. Additional applications include side fill and DJ monitoring.
This new element was engineered to provide medium-/long -throw mid/high-frequency audio in a coaxial configuration. The frequency response covers 150Hz–19kHz, with a precise coverage pattern of 90°H x 50°V over the 400Hz–17kHz range, ensuring even sound within the coverage area. As the PXH95 cabinet is square, it can be rotated to achieve 50° H x 90° V coverage pattern.
To obtain the highest possible on-axis sound pressure levels over long distances, the PXH95 is entirely horn-loaded, creating an additional sensitivity and improved pattern control. The HF range, from 1.15kHz upwards, is reproduced by a Neodymium 1.4-inch driver with a 3-inch voice coil and a constant-Q horn, while the mid-range, from 150Hz–1.25kHz, is provided by a low power compression 12-inch driver loaded by a midrange horn.
Wider horizontal coverage can be achieved using multiple PXH95, laterally stacked or flown. The cabinet must be rotated by 90° to avoid the comb-filter effects.
A Tilt Unit (available as an option) permits the cabinet to be angled in 5° increments up to a maximum of 15°; as a result, the upper cabinet can be aimed directly at the audience area even when the system is groundstacked. Optional flying hardware enables it to be flown. The cabinet is fitted with M8 threaded suspension points, supporting a wide variety of installation approaches.
As a standalone cabinet, the PXH95 can be used in a variety of installation settings, including sports facilities, performance spaces, auditoria and worship facilities.
