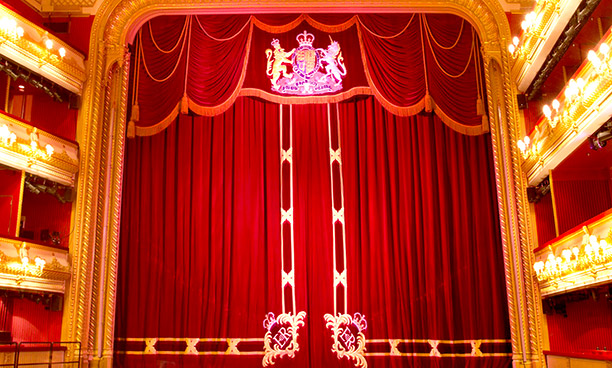

Stage Electrics has completed an ‘invisible’ sound reinforcement installation at the Royal Opera House – K-array KP102 speakers, mounted eight per side on the proscenium arch.
The installation follows a visit to Verona for Royal Opera House Head of Sound, Steve Zissler: ‘I was asked if there was anyone thatI’d like to take to listen to some sound systems,’ says Jamie Gosney from Stage Electrics, who designed the new system. ‘I didn’t know the K-array products that well, but Dave Wooster, [now with 2B Heard, K-array’s UK distributor], had said that the K-array products were perfect for opera...’
Soon after, Stage Electrics took a KR402 system to the Covent Garden theatre for Zissler to hear: ‘They thought it was just the sort of system they’d been looking for,’ Gosney says. ‘We didn’t know what results we’d get in the venue, but with just that one portable system, we could hear it wherever we went. It was pretty amazing.’
The first opportunity to put the system through its paces came when Anthony [of the Johnsons] played the Royal Opera House with a small orchestra. ‘Anthony’s engineer, Kevin Pruce, saw at the K-array and I noticed a look cross his face,’ Gosney says. ‘I knew he was worrying about it, so I suggested he put some music on that he knew and walked round the building’
Pruce walked the entire venue with system tech Mark Isbister, and decided they were more than happy to use it. ‘I knew then that it was going to work,’ Gosney says. ‘They did the gig that evening and it was just mind-blowing. And he was running it really loud, which proved that the K-array system can handle anything.’

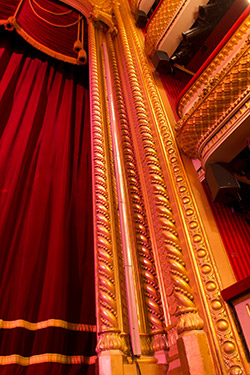

A short while later, Zissler put the order in for the final system, which comprises the KP102, colour matched to the gold of the proscenium arch (‘Everyone said they looked pink when they were first done, but in actual fact, they’re a perfect match.’) with 24 KKS50 Compact Sub-Bass in six clusters of four subs, three clusters each side, eight KK102 front fills built into the new thrust stage, two KA84 four-channel amplifiers powering the main proscenium LR system, a KA84 four-channel amplifier powering all six sub bass clusters and a further KA24 four-channel amplifier powering the front fills.
‘One of the truly amazing performance aspects of the system is the image across the room,’ explains Wooster ‘From sitting in the very first box, round to dead centre, the stereo image is impeccable. Even if you are sitting in the first box house left, you experience a lower level of the left array due to proximity, but you also receive a strong level of house right because the distance allows the system to couple more elements. Combined with the 110° horizontal spread, left and right are well balanced.
‘The other benefit of this system is that due to the amount of drivers in the column you are always on axis to the system. This has a dramatic effect on the requirement for under balcony delays and the real experience of sound coming from the stage and not above your head.
‘The overall performance of the system, totalling eight KP102s per side, each providing 720W from 12 drivers in each section, mounts up. With 96 3.15inch drivers providing around 5,760W, a dispersion of seven degrees vertical and 100° horizontal and weighing in at 96kg, this becomes as system like no other.
‘Mixing on a system like this does require a small amount of mind over matter if you constantly look at what’s in from of you, as opposed to what you’re hearing. But if you stop looking and start listening your mind will easily remember what matters; a system that has a dynamic and fast response to what it receives and accuracy in what the engineer expects and wants it to do.’
‘As well as being an opera house, we also host commercial events,’ says Zissler. ‘And for us, the K-array is a system that covers at least 90-95 per cent of what we want to do. If we were doing Iron Maiden, it would be slightly different, but the chances of that happening are really slim.
‘When you walk into the auditorium, you’ve got the grandiose gold proscenium, rich red plush seats and you’re not expecting to see a loudspeaker hanging above your head. That’s the key to it for us; it’s all about is people coming into the auditorium and not seeing a loudspeaker, or not having a sense of the sound being reinforced. For a commercial event, it’s fair enough, but generally, if we’re doing some of the more contemporary operas or ballets which may have electronic instruments as part of the score, you just want that sense of the sound being lifted, but not the sense of it coming from that loudspeaker over there.
‘We do a major television production here every year and I was very mindful of the fact that it’s Stewart Chaney of Plus 4 Audio gig – we’re just the venue facilitating that. I knew I had to phone him and let him know we’d changed the system to K-array and I was very keen for him to listen to it. It just so happened that it tied with a K-array demo that we were both going to and he was really complimentary about the system. In fact, he said he didn’t need to use anything else, because it covers the boxes at the sides of the auditorium beautifully as they’ve got such a wide dispersion. In actual fact, for what they needed them for they were absolutely perfect.
‘If you look back at previous shows, they have this massive lamp and shine it up at the proscenium. We had covered the previous system to match in with it and you could see the loudspeakers. This year, they still had the lamp shining up, but you didn’t even know the speakers were there - and Stewart was really complimentary.
‘When that happens, you think to yourself, we did the right thing.’
