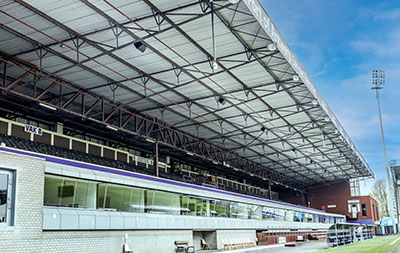

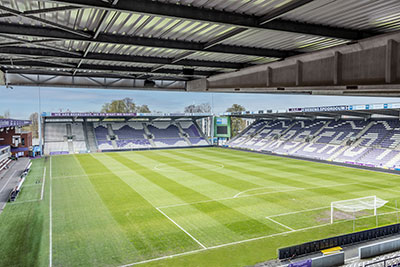

The main location for the 1920 Summer Olympics, Antwerp’s Olympisch Stadion remains one of the city’s landmarks and is the home of local football team, K.Beerschot VA. When the stadium’s management recently determined the venue’s sound system to be outdated, they called on audio experts PFL and Face Projects.

‘PFL – one of our preferred dealers – came to us for advice on their design and budget in reference to renewing the stadium’s existing sound system, which was about 25 years old at the time,’ says Face Projects Manager, Steven Kemland. ‘Beerschot wanted an installation to improve speech intelligibility and to play a good ambient sound – the latter of which was not really possible with the old system.

‘From the first design we were able to answer all their questions within the budget they had in mind, so we were not forced to make any backup plans.’

The team chose three Powersoft Quattrocanali 8804 DSP+Dante to drive 25 Martin Audio CDD15-WR and 17 CDD10-WR (used as delay), with control from a Dynacord Matrix comprising an MXE5 mix engine and a pair of TPC-1 touchpanel controllers.

‘We love Powersoft and the people involved,’ Kemland says. ‘We know that this great

range of products can serve all projects with in a very professional way. Between the Quattrocanali, Ottocanali, Mezzo, and T Series, we have solutions for everything, from very simple projects to more complex installs. With the Quattrocanali 8804, you have a lot of power, onboard DSP, and Dante, all in compact format; not only regarding size of the unit, but the necessary current and cooling too. To have all of this – for a price you can defend to a client – is invaluable to a company like ours.’

The system is also used for security support in crowd control, and PA applications, thanks to its zoning capabilities via the pre-programmed TPC-1 touchscreens controlling the Dynacord MXE5 Matrix processor.

The team made good use of Powersoft’s ArmoníaPlus software, which they used to tune the system. ‘In ArmoníaPlus you have all the parameters you need to adjust and secure the system as much as is necessary. In this project it was strange to be able to replace a complete 42U rack filled with 20-year-old amplifiers with just three units and still have the 12 zones in the stadium with a total power of 20kW.’

To ensure the team was prepared for special events, an external connection port with a Radial Engineering interface has installed near the field to be able to plug analogue signals into the Dante network and use the main sound system without any hassle.

Although technical design was done by Face Projects on behalf of PFL, both teams worked together on installing the new setup, and support and maintenance will be followed up solely by PFL.

‘The stadium won’t be at full capacity until September, but everyone at the smaller (100-capacity) games so far has been really happy with the new system,’ Kemland says. ‘Overall, this has been a great project, and Powersoft can rest assured that they have a proud dealer and another happy customer.’
