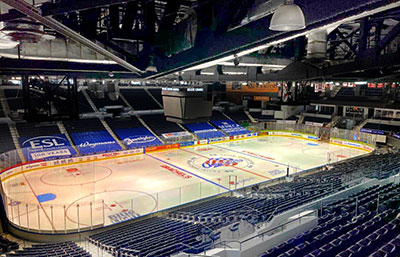

Formerly the Rochester War Memorial, the Blue Cross Arena has operated as a multipurpose venue for more than 60 years – it has served as the home of Rochester’s AHL hockey team, the Americans, since their founding in 1956 and hosted numerous sports and entertainment events each year.

With a relatively low roof structure limiting loudspeaker mounting height, sightlines to a new scoreboard/display system to be respected, roof trusses shadowing certain seating areas from the primary loudspeakers, and fixed rigging points used for the annual Trans-Siberian Orchestra staging (and other events) restricting the locations available for installed loudspeakers, the venue recently undertook a sound upgrade.

Fulcrum Acoustic’s AH4, AH and FH series products were selected as the primary loudspeakers for the project for their combination of output, fidelity, control, and efficiency. They deliver extremely even response within their coverage pattern and offer the variety of horn patterns necessary to optimise coverage for the geometries of the venue’s seating. Their smooth off-axis response allows them to transition well in distributed systems where many audience members may be seated in a ‘seam’ between adjacent loudspeaker zones.

Nine primary loudspeaker arrays provide coverage for most of the Blue Cross Arena audience seats and the arena floor, with supplementary delayed loudspeakers providing coverage for shadowed seats. Six of the nine arrays are flown above the dasher boards along the sides of the ice floor (three arrays per side). Each is comprised of one AH65 above one AH96, with a backwards-firing FH1596 providing coverage for the arena floor. Four arrays include four CS121 cardioid subwoofers to provide low frequency support for music playback.

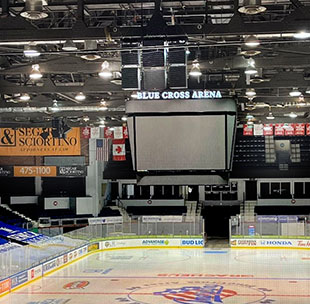

At the north end of the arena, three arrays provide long-throw coverage for the seating sections that extend upward behind the hockey goal. Each array is comprised of a single AH463 (long throw) above an AH65 (medium throw). The centre array includes four CS121 cardioid subwoofers.

Supplementing the main arrays, five FH1565s are mounted along the large north roof truss to cover the uppermost rows of sets that would otherwise be shadowed by the truss. On the south side of the arena, four FH1565s cover the corners and the lower-level seating. Four GX1277 12-inch coaxial loudspeakers provide coverage for a smaller, elevated seating section at the south end of the arena.

Michael Lawrence from Rational Acoustics was responsible for tuning and balancing the system: ‘We had well-behaved loudspeakers, in a well-behaved design, to work with on this one,’ he says. ‘Loudspeaker selection and system design set the bar for what’s possible during the alignment, and I could tell the Fulcrum team did a great job in that department because my team had an easy day.

‘We worked through all 57 zones in about three hours, and we were only able to move that quickly because the system was in such good shape when we showed up. I didn’t have to try to “band aid” around the deployment issues I typically see. We just did some level balancing and timing and we were basically there.

‘As I was working through the system, I was walking the coverage with Stephen [Siegel, of Fulcrum Acoustic] and my tech, David Williams. We would talk about changing something by a dB here or a millisecond or two there, and when you’re talking about changes that slight, that’s how you know your system is in a good place.’

Each subwoofer array, using CS121 Passive Cardioid subwoofers, provides substantial low frequency output and control. ‘I haven’t heard low frequencies behave so well in a room that big before,’ says Lawrence. ‘With distributed subwoofer designs, usually you have tons of late arriving energy coming at you from all over the room, and that makes a bit of a mess. But with the passive cardioid subwoofers, you shave about 10dB off from what’s coming off the back of the box, and it’s a “big” 10dB. You end up with less energy going where you don’t want it, and perceptually it was night and day from what I would expect without that directional control in the low end. At times I had to ask the DSP tech to check the mutes because I couldn’t tell whether the subs on the other side were on.’
