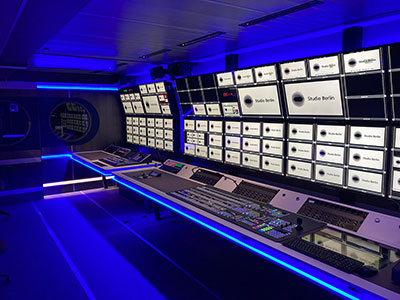

German TV production service company Studio Berlin has commissioned a new UHD/HDR OB van, the U10, which has already been successfully used in live production of the German Television Award (RTL). Studio Berlin pursued innovative paths for mobile production units in the planning and implementation of U10. With approx. 60m2 working space the OB van offers up to 26 people sufficient space for a relaxed working atmosphere. It can work with up to 24 UHD cameras and partners perfectly with a modern support truck. U10 is the second production vehicle (after the U9) that Studio Berlin planned and built with the German system integrator Broadcast Solutions. The most significant innovation leveraged with U10 and never been implemented in this consistency before is the separation of control room and technology. The technical components are not installed in the OB van, as is usually the case, but are housed in a central equipment room in the support truck. A fibre interlink connects both vehicles. Because of the vehicle’s size and concept, Studio Berlin is well equipped to realise even the most prominent sports productions and show events.
Installing large parts of the technology in the support truck offers many advantages for productions and the teams in the OB truck. Outsourcing provides production teams with additional workstations and magnifies working areas. Therefore, minimum distances between workstations can be maintained, making acrylic glass shields expandable. The ingenious room concept also has positive effects on the flexible use of space during productions. The two control rooms can easily be transformed into one ample control space by moving doors and monitor walls. The air-conditioning technology has also been simplified, thus reducing the noise level in the vehicle. With no separated air-conditioning circuits needed for the racks and the workspace, planners could concentrate entirely on aligning the air-conditioning system with the people in the vehicle – an essential consideration in improving working conditions. In addition, the latest technical innovations are integrated by planning the air-conditioning system to filter germs and bacteria out of the air and blast them with UVC light flooding. The vehicle’s fresh air supply and air exchange rates are far above legal standards. Independent of Covid-19, these measures reduce the spreading of other contagious diseases when working in confined spaces like an OB van.
‘With U10 we add another large vehicle to our UHD/HDR company strategy, which started with OB U9 four years ago,’ says Studio Berlin MD, Nick Zimmermann. ‘We have built up a great deal of know-how in implementing high-quality productions in UHD/HDR that incorporated into the planning of U10. With this strategy, we provide our services at the highest technical level, especially in large UHD sports or show productions. In our view, for these productions, the classic OB van still has its right to exist, all the more if you pursue an innovative concept, as we have done with U10.’
U10 offers 26 workplaces and can realise productions with up to 24 UHD cameras (Grass Valley LDX 86N) and additional wireless cameras. The OB truck is equipped with a Grass Valley 12G K-Frame XP Compact vision mixer with XTREME option. With two Grass Valley control panels accessing the vision mixer, a Karrera K-Frame 3 M/E in the main control room and a Korona 2 M/E in the second control room, users have the maximum control. Thinking about the routing concept, Studio Berlin opted for Riedel’s decentralised MediorNet router solution, which manages the video and audio signals and the multiviewers. With 38 UHD MicroN units, Studio Berlin sets new standards in UHD and HD signals management. At the heart of the two audio controls are Lawo audio consoles. An mc256 MkIII (64 faders) console with fully redundant UHD cores is installed in Audio Control 1, with a Lawo mc236 (16 faders) console in Audio Control 2. Significant for sports productions is a large number of slow-motion servers. In U10, eight EVS servers or Grass Valley LiveTouch servers can be operated in maximum configuration.
‘In principle, one can describe our approach using the slogan >The OB van as a workspace becomes a stagebox<,’ says Studio Berlin CTO, Matthias Alexandru. ‘By outsourcing the technology, we gain space and reduce the air-conditioning technology as well as the overall weight of the vehicle. The room idea and technical workflow concept support a quick and ad hoc change of room sizes and structure as well as production workflows – keeping in mind that the OB works in different productions. Moving the racks into the support van gives us more flexibility to expand or adapt capacities. By outsourcing the racks, using the decentralised router concept and the adaptable room layout and leveraging our workflow concept for UHD/HDR productions, U10 prepares us for the future of TV production.’
Studio Berlin has considerable experience in implementing UHD/HDR productions derived from co-operations with directors and lighting designers that reflect in the planning of U10. Studio Berlin has been working with the single master HDR workflow for a long time (although dual master workflow is also possible at customer’s request). To increase production reliability, U10 uses a powerful UPS buffer – in case of a power failure, U10 can maintain the production for 15 minutes on battery power. The UPS buffering gives time to react and change the power source in case of emergency, making it unnecessary to use a diesel generator in parallel – a further contribution to sustainable production.
