The recent FINA Swimming World Championships in Shanghai saw German Mobile Production Unit (MPE) OB unit in action before it moved to Daegu, South Korea, for the IAAF World Championships in Athletics.
Belonging to German public broadcasters ARD and ZDF, the unit served both events with a Lawo mc²56. The digital console is mounted in a 16-16C frame with two extensions of 16 faders each, providing 64 faders. Seven DSP cards (one of which is used for redundant cover) provide 336 DSP channels, of which 288 DSP channels are used actively. For the Shanghai event, everything was mixed on the mc²56 but not in surround, as the host broadcaster, CCTV broadcasts in stereo.

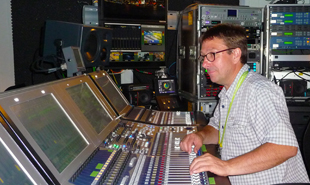

MPE administrator Horst Dünchem had to adapt the unit’s set-up to cope with the limited space available on site. This was – apart from reliability and the redundancy design of Lawo consoles – one of the main reasons for choosing the mc²56. Fast access to any channel functions is guaranteed by the console’s Reveal function.
Planning for the outing started in March 2011 and, by the end of May, the MPE was shipped in six 20-ft containers from the port of Mainz in Germany (on the Rhine) via Rotterdam to Shanghai; the containers arrived in early July. At the International Broadcast Center (IBC), offices and control rooms were erected, and this is where all the broadcast equipment was installed.
Sixteen different sized containers were provided to house the technical equipment, control rooms, the editing staff, plus offices for ARD and ZDF, all with air-conditioning. The central control room – measured around 6m by 8m – accommodated the studio control and editing areas, as well as space for EVS operators, a virtual technology unit, the video mixer and an audio control room for live broadcasts. The other containers hosted three Avid edit suites, one audio mix area and a well-cooled equipment room with a video matrix, the Avid network, the EVS network, the Lawo console’s HD core and two matrix nodes for the Riedel talkback system.
Another room housed the Master Control Room for the technical control of broadcast outputs, the on-air broadcast scheduling crew, and camera control for five cameras (for national coverage in addition to the international feed). International feeds from the host broadcaster, which were used for transmission to Germany, included those for water polo, diving, open water swimming and the short-distance swimming competitions.
In the swimming hall, there was one commentator position for swimming, one presenter location and one flash interview location in the mixed zone and, if required, also in the athletics’ block. In all, 15 Dallis frames were used in different areas, all supplying signals to the Lawo mc²56.
