Among the Netherlands’ oldest and most prestigious concert halls, Musis Arnhem completed a major audio upgrade recently to address the evolving requirements of its programming. The venue hosts more than 100 concerts annually representing various genres, has installed an L-Acoustics L Series loudspeaker system in the Parkzaal, marking a significant advance in its sound reinforcement capabilities.
L-Acoustics Certified Partner Fairlight led the design and implementation of the new system, with Rene van der Linden at the helm. ‘L-Acoustics was the clear choice for Musis Arnhem, which primarily hosts visiting productions,’ he says. ‘When we demonstrated the L Series system in the Parkzaal, it quickly became evident that it not only met but exceeded all their sound requirements.’
The installation in the 2,000-capacity Parkzaal demanded a versatile sound system capable of serving all performance types, from classical to contemporary. Key challenges included achieving high sound pressure levels with uniformity across all listener positions while maintaining a low noise floor for classical concerts and corporate events. The system needed to adapt to the hall’s adjustable acoustics, including reflective uneven oak walls for classical concerts, 400 sound-absorbing panels used for amplified production and a glass rear wall, while keeping its visual impact to a minimum. Additionally, the team had to address the complex acoustic environment created by the balcony – considerations met by the use of L-Acoustics Soundvision design software. This allowed them to test and refine various configurations virtually before the physical installation began.

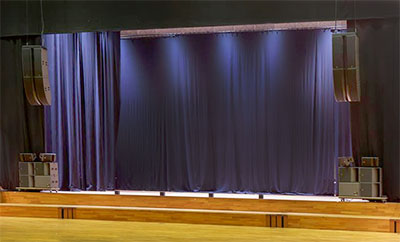

The system includes a main PA of one L1 and one L2D loudspeakers per side, plus four KS21 per side, complemented by eight KS21 subwoofers for low-end reinforcement. Four A10 Wide speakers serve as in fill, with three 5XT providing front fill. The system is powered by four LA7.16i, and two LA12X and LA2Xi amplified controllers, with processing handled by a P1 processor and networked via LS10 Milan-AVB switches.
The L Series was the preferred option for Musis Arnhem’s requirements as its compact design and sonic capabilities allowed better coverage in a smaller footprint than alternative options, helping to preserve the venue’s aesthetic.
Feedback from both staff and audiences has been positive, with some noting the improved clarity and consistency of sound throughout the venue, regardless of seating position. The L2 system’s ability to adapt to different acoustic settings within the Parkzaal has been particularly praised for meeting the needs of every type of performance.
As Musis Arnhem continues to host world-class performances and serve as a cultural cornerstone in the Netherlands, the new L-Acoustics sound system cementing the venue’s reputation as one of the finest concert halls in the country.
More: www.l-acoustics.com
