Following in the wake of the Glastonbury Festival, the 2013 Coronation Festival at Buckingham Palace saw RG Jones in action again with equipment from its Martin Audio inventory. Unlike Glastonbury, where a Martin Audio W8L Longbow system was used, it was the company’s W8LC and W8LM systems that saw action.
The audio specialists had been sub-contracted by main technical production company, Hawthorns – who were, in turn, introduced to the project by event organiser, Media 10. Both the Coronation Festival and exhibition were hosted by the Royal Warrant Holders Association in the Gardens of Buckingham Palace.
RG Jones had been approached earlier in the year to participate in this historic event, and fully honour its ‘By Appointment to Her Majesty The Queen’ warrant.
As a Royal Warrant Holder, RG Jones participated at an exhibition in Buckingham Palace Gardens (with 200 others) while simultaneously providing sound reinforcement for the accompanying gala concerts. The RG Jones stand comprised an original Morris J-type, as the one used by the original founder Ronald Geoffrey Jones back in the 1920s.
‘We have used the W8LC system for so many classical concerts of this size in the past that we were confident [that the W8LC and W8LM systems] would sound fantastic and would give us no sleepless nights,’ says Ben Milton. ‘It just works so well.’
But the implementation of the system for the Raymond Gubbay gala concerts was far from straightforward, as Milton explains: ‘Aside from the stringent guidelines and provisos we had to follow, the PA wings were extremely wide – around 95m between left and right – which required an additional LCR centre system flown over the stage.’
And with a wide variety of artists celebrating 60 years of the performing arts – including Dame Kiri Te Kanawa, Katie Melua, Russell Watson, Katherine Jenkins, Laura Wright, Only Boys Allowed, The Feeling – as well as the National Youth Orchestra and Matthew Bourne’s New Adventures – it created quite a line congestion for Milton and Simon Honywill at the FOH mixing desk.
‘I love the challenge of having 250-plus inputs on the desk with multiple acts,’ Milton says, explaining that this included active splits from the stage, sent to the BBC broadcast OB trucks.

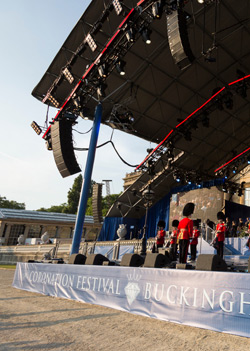

Out on each wing, in front of the Palace terrace, two hangs of 14 Martin Audio W8LC elements were mounted on smart PA masts. A further three centre in-hangs formed the thrust canopy PA. This comprised six W8LM Mini line arrays (with two W8LMD Downfills at the base), flanked by two hangs of eight W8LC to produce an LCR image.
Under the thrust stage, four gauze-covered WLX subs were stationed, with a further six ground stacked WLX under the two speaker masts (three per side). Finally, eight Martin Audio DD6 Differential Dispersion horns were positioned along the front lip as close fills.
All processing was carried out in an XTA Audiocore environment, with system technician Mark Edwards EQing and time aligning the system remotely via a wireless tablet.
‘The in-hangs had to do all the work and we had to deal with timing issues between the wide hangs and the inner hangs,’ Milton says. ‘The LC’s worked fantastically well and provided full 100m coverage without delays serving a 20,000 crowd.
‘In fact, when you sat in the middle of the auditorium it was just like a cinematic setting carefully time aligned to get the stereo image – and wherever you went it delivered and it was still high fidelity sound.’ The audio complemented the width of the stage, he said, adding that both Tim Davies [BBC Television sound supervisor] and the orchestra had expressed their delight with the sound.
‘The whole event was special because you simply forgot where you were. The Palace provided an amazing backdrop.’
Supporting system designer Ben Milton, FOH engineer Simon Honywill and system tech Mark Edwards, James Breward (system/comms) and on stage, Mark Isbister (patchmaster), Alison Dale (RF and orchestral micing), Damon Dyer (monitors) and Ian Threlfall (stage).
