The Australian Defence Forces Academy (ADFA) in Canberra has recently opened a new-build 1,200-seat auditorium to host conferences and presentations. The flexible space is constructed as a 160º arc, with sliding panels that allow it to be used as a single space or separated into two independent 800-seat and 400-seat venues.

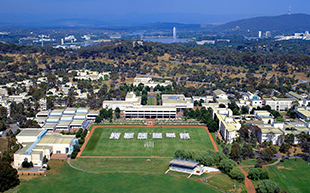

The auditorium forms part of the redevelopment of ADFA, a partnership between the Australian Defence Force and the University of New South Wales, which provides training and education for future leaders of the country’s Navy, Army and Air Force. ‘The requirement was primarily for a system to provide vocal reinforcement, presentation sound and background music on a limited audio budget and with minimal visual impact,’ explains L-Acoustics Sales Manager, Tim McCall. So it needed to be as compact as possible both in terms of both sizing and cost. As a fairly large space, the system needed to be able to cover the entire seated audience, both in combined mode and separate mode. And as it’s primarily a lecture theatre, good intelligibility in every seat is vital.’
L-Acoustics distributor and integrated technology solutions company, Hills SVL, was initially approached by Guz Box in 2012 to give recommendations on how to achieve the complex control, audio and visual requirements of the proposed auditorium – a process that took more than 12 months from start to finish.
‘From the beginning, there were very strict criteria for architectural aesthetics, projection site lines and the operable wall requirements of the venue,’ explains Hills Brand Manager for Pro & Commercial Audio, Gerry Gavros. ‘Due to the use of multiple projectors, it was important that the system should be as visually discreet as possible. In the early stages of planning, both column arrays and distributed speaker solutions were under consideration.’
As the project progressed, Hills worked closely with the builder and team at Guz Box: ‘We were involved in the important aesthetic implementation of products, both for the furniture and the auditorium,’ Gavros confirms.
‘It was at this point that we were requested to re-address the sound reinforcement solution and look at an alternative to the single enclosure distributed loudspeaker system. We chose to submit an L-Acoustics system for consideration, and our design team worked with L-Acoustics’ application engineers to devise a variable curvature line array solution.’

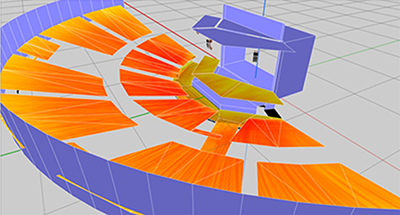

Hills specified an L-Acoustics Kiva system to provide a flexible, powerful and discreet solution. The design comprised three arrays of six Kiva cabinets topped with an SB15M sub, and powered and controlled by one L-Acoustics LA4X. This provides combined control of the arrays when the venue is in combined mode, while allowing each array to address distinct areas of the auditorium in separate mode.
‘Everything had to be flown, so each Kiva covers one specific area of the audience, from the first to the last row,’ says Damien Jhusaz, Hills’ Technical Support Engineer. ‘The three arrays can be used together when the room is combined, or separately when divided. It’s a very simple set up and, since there is one Kiva array taking care of each section of the audience, it delivers a very high level of intelligibility.’
‘Being able to fly the entire system was key to ensuring it was visually discrete,’ adds Gavros. ‘This was aided by L-Acoustics supplying the equipment in a RAL colour that matched the military grey/black of the venue’s ceiling.
‘Tim Kuschel from Guz Box measured the system’s speech intelligibility on the last day of tuning/calibration and the values measured – which had an average STI [Speech Transmission Index] of 0.75 – were exactly in line with the predicted results. When you move through the room, it sounds exactly the same everywhere and this is an exceptional result, given the various constraints of the project.’
