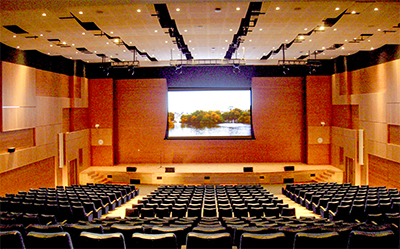

Maintaining impeccable learning standards, the Kuwait College of Science & Technology (KCST) also has – arguably – the best auditorium in the country. Part of a three-year project at the one-of-a-kind private university in Kuwait City, regional systems integrator Bader al Mulla chose Renkus-Heinz solutions for what it describes as the ‘perfect installation.’
Comprising a 525-seat auditorium and two 215-seat lecture halls, the KCST project began in 2014 and was more personal than most for Bader al Mulla. A leader in its field, the company shows its allegiance to the region by supporting the college with its considerable expertise. As a result, when A/V Engineer Manohar Sharma was tasked with designing the college’s audio systems, he knew the end-result had to be good. What he didn’t know was that he was setting out on a journey to create ‘one of the very best audio installations I have seen in my life’.
‘I was involved in the audiovisual design for the entire KCST complex, the heart of which is the auditorium, with the two lecture theatres,’ he says. ‘The technology is excellent throughout – Christie projectors, Extron and Crestron switching control, and of course Renkus-Heinz loudspeakers. But what was remarkable from the beginning was the quality of the room itself - the room acoustics. It has been so well designed and constructed that it has a measured STI of 0.77.’
‘The whole installation is basically perfect,’ claims Renkus-Heinz Middle East Sales Manager, Norbert Bau. ‘The auditorium in particular is a wonderful space in which they’ve worked incredibly hard to achieve an optimum acoustic environment. The average STI of 0.77 is amazing, and the room actually sounds like a studio – the sound is always very close to your ear.’
‘I have worked on auditoria and theatres before,’ he adds, ‘but this one was special.’
Given such impressive conditions in which to work, Sharma and his colleagues from Bader al Mulla set about crafting an audio solution without the usual restraints of in-room problems. Their work was made all the more important by the auditorium’s own high profile. ‘There are very few auditoria here in Kuwait,’ he explains. ‘There are some but they are not so big, and we have seen other rooms with systems that are not intelligible. So we wanted to deliver a very high quality and future-proofed solution.’
The choice of Renkus-Heinz may be considered surprising considering the brand’s reputation for using its beam steering expertise to rescue problem rooms. But for Sharma, there was no other alternative worth considering. ‘We have some experience with other brands but we know from previous projects that Renkus-Heinz is very supportive, and that we could relax in the knowledge that they would come onboard and support us by certifying the commissioning and doing the fine tuning.’
Nor were the beam steering capabilities of the system wasted in the room, as Bader al Mulla deployed them to ensure absolutely even coverage to every seat. ‘Beam steering is still applied because the auditorium is quite wide, around 65ft (20m), and about 100ft (30m) deep. With left and right arrays serving such a deep auditorium, we needed to direct the beams to achieve optimum coverage across the audience area, which we have.’
Providing that coverage in the auditorium are two Iconyx ICL-FR Dual arrays mounted at the far left and right of the stage, with low-frequency support from two PN 212 SUBR subwoofers installed into the front of the stage. This core system is used for speech reinforcement, delivering all-important intelligibility for students and visiting dignitaries alike. Meanwhile, for more ambitious productions, a surround sound system has been installed comprising five PN61R enclosures as front fill and a further ten PN61R loudspeakers positioned at the left, right and rear of the audience. Completing the auditorium system are two-way CF61 enclosures used as monitors within the control room, and four PN121M conic loudspeaker systems that are used for on-stage monitoring.
‘By using beam steering we achieved really smooth coverage across the entire audience,’ says Bau. ‘When we finished the commissioning we asked the general manager to come and listen and he was really surprised. The final result was very good. It proves that with Renkus-Heinz beam steering you can achieve results beyond the usual.’

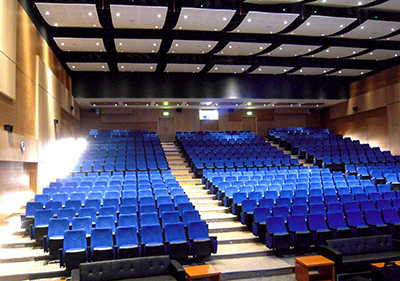

Though smaller, the lecture halls are equipped to the same standards. Both have been outfitted with matching systems, comprising two Iconyx ICL-FR Singles, again mounted at the extreme left and right of the stage, supported by a single, central PN212SUBR subwoofer and three PN61R enclosures as front fill. Two CF61 speakers serve as control room monitors. ‘Even in the lecture halls, they have a world-class system,’ Bau says.
‘For me, this whole project was very special because of the level of technical skill and the commitment to the work that has been done. KCST had the determination to create a truly excellent solution, and Bader al Mulla had the ability to get the job done properly. We supported them with as much information and assistance as we could and the end result is fantastic.’
‘This is definitely a reference project for us with Renkus-Heinz,’ Sharma reflects, looking on the creation of the system as a highlight of his career to date. ‘It is a matter of pride that we have successfully completed such an important solution.’
