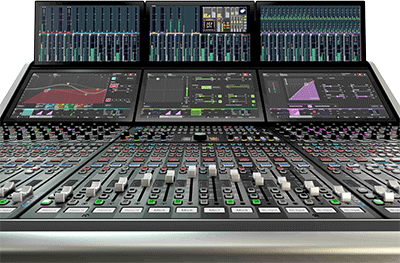

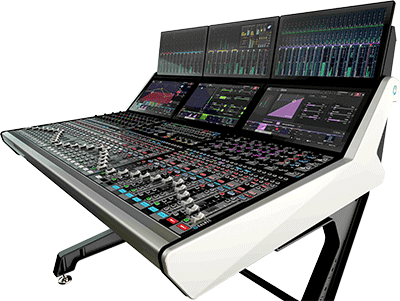

Calrec Audio is billing its new Argo audio mixing system as ‘a new approach to audio mixing, with a flexible control philosophy that breaks the traditional geographic tie lines between processing and control’.
Targeting the broadcast market, Argo is fully modular with interchangeable hardware panels, with Calrec’s Assist UI at its core. Whether working on physical hardware panels or on a remote GUI, the user interface is both intuitive and consistent. The modular panel system allows users to adapt surface hardware to meet particular requirements, with two mid-level rows of interchangeable panels on the larger Argo Q model, and a single mid-level row on the compact Argo S model.
Calrec has also announced a comprehensive system of templates to instantly change the hardware user interface to meet changing requirements or user preferences.
Argo is built around an expanded version of Calrec’s ImPulse IP core, which can be located independently of the control surface. It can power up to four independent mix environments, including headless mixers accessed on the public internet, with each mixer able to access more than 2,350 processing paths on a single console; this provides enough power to deal with the biggest immersive and NGA mixing demands.
‘Broadcasters are under greater pressure to create more content cost-effectively as they are all competing for the same viewers in an increasingly congested market,’ says Calrec VP of Sales, Dave Letson. ‘At the same time, production workflows have to be more flexible to be more efficient, cover more content and work as part of distributed production models. Broadcasters’ move to IP based networks is encouraging more remote working in more fragmented workflows; we’ve designed Argo to work within each and every one of these new paradigms.
‘As broadcast infrastructures migrate to new environments, broadcast consoles need to work in different ways to ensure that they remain a safe investment,’ he adds. ‘On Argo, Calrec’s Assist GUI is central to the operation of the console and is directly transferable onto a browser to provide portability, backup, and on-the-fly configuration in remote locations.’
Argo’s physical control surface is also streamlined, using optically bonded touchscreens to provide unrivalled visual feedback and speed of access. Soft panels provide a richer user experience and hardware panels allow users to build definable functions and apply these as templates - this helps operators move around the surface faster and makes it more intuitive. Argo’s panels are interchangeable, and can be placed wherever they are needed, making it easy to grow and adapt the console to changing requirements and allowing the desk to be split for sub mixing or mixing in other locations.
All control elements can be duplicated, so an operator can use any panel to access inputs and controls, while fader scrolling functionality adds more protection. When combined with redundant hardware as standard, Argo provides SMTPE’s hitless packet merging alongside a second layer of hardware redundancy to guarantee broadcast uptime.
Argo includes optional AoIP IO modules that can be fitted directly into the control surface, with a variety of I/O options. These can be fitted into every section of the console to give the operator a variety of input options, make cabling more efficient and save space in external racking.
With NGA content on the increase and broadcasters adding value to productions with increasingly complex NGA output formats, Argo provides tools to make everything simple to organise and manage. Flexible immersive spill helps maintain total control over multi-channel formats but with no need for dedicated surface real estate. Multichannel sources can be controlled on a single fader but spilled out onto more faders for fine control; Argo allows spill faders can be placed anywhere on the control surface, on any layer and in any position to free up space and make the workspace more adaptable to individual needs.
Operational features include: Key Inputs and Ducker; full EQ and Dynamics on Auxes and Tracks; Flexible Spill; User configurable colours for faders; Control Links; Inserts on Auxes; Variable slopes on EQ shelves and filters; Flexible panel layouts (Wilds). Argo has an increased DSP engine that provides 2496 channels on a single console, and physical flexibility up to eight sections to provide up to 96 faders. Multiple sections can be combined or geographically diverse, while the enhanced ImPulse core provides enough horsepower to drive up to four Argo mix environments on one IP core.
‘Argo is a testament to Calrec’s ability to innovate with the changing times and carve a path through the industry’s changing broadcast workflows. The result is an audio console that provides an unmatched feature set that meets broadcasters’ needs now and well into the future,’ Letson says.
More: http://calrec.com
