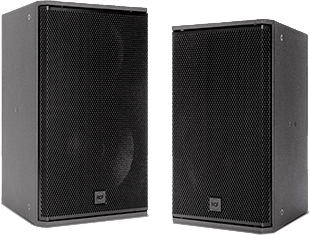

Available in two sizes, offering 12-inch and 15-inch woofer options, the RCF Audio Compact C Series of installation loudspeaker is intended for both background and foreground music applications. For weather resistance, a WP model features acoustically transparent, water-repellent fabric within the grille assembly and IP67 Amphenol Ecomate power connectors.
The compression driver voice-coil design with titanium dome provides natural sound with high power handling and durability over time. This allows the usual crossover point to be lowered to achieve better vocal performance at mid frequencies, also improving coupling with the low-frequency transducer. The low-frequency transducer design provides improved stability over higher currents, with lower distortion, and is highly efficient in terms of heat dissipation. Woofers endure a 200-hours continuous signal test to stress the transducer at extreme levels.
The waveguide design of the Compact C Series allows accurate control of directional characteristics. The loudspeaker features a 100° x 50° rotatable constant directivity waveguide, which can be swapped using an optional HN-Kit Compact C 32 C 45, for either two alternatives that change the enclosure’s directivity to 100° x 25° or 60° x 25°.
The design implements several refinements in transducers, crossovers and vented port design, with protection offered by proprietary Dynamic Active Mosfet circuitry. With the advanced design and sound shaping of the waveguide, the loudspeaker provides constant directivity and coverage to the entire listening area.
A solid, balanced birch plywood cabinet uses a textured polyurea coating for its scratch-resistant properties, also lasting longer than traditional coatings. The grille cover is heavy-duty steel protecting both transducers and vented ports. The rear panel carries two Neutrik Speakon NL4 (4-pole) plugs or IP67 Amphenol Ecomate power connectors for the WP version.
More: https://www.rcf.it
