Wisycom has announced an integrated RF Scanner for its MRK16 multichannel receiver system, extending the functionality of the MRK16, including the ability to manage up to 16 true diversity, multi-band channels in a 1U-high, 19-inch rack. The MRK16 can now be daisy-chained up to four times, for 64 channels of audio, and is the perfect choice for any application in need of a wireless microphone system.

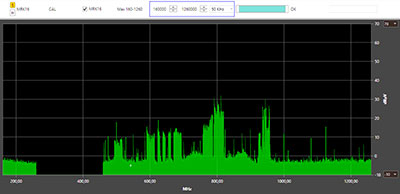

The MRK16 accepts up to four MCR54 receivers, providing antenna distribution, RF filtering and audio routing. Its dual-zone matrix makes it possible to select and combine two diversity zones using an antenna booster and smart remote control of the Wisycom LFA/ADFA/BFA. With the RF Scanner, users can monitor RF activity and optimise frequency deployment without sacrificing an MCR54 to do so.
‘With this addition, the MRK16 becomes the complete core of wireless microphone systems, making it the ultimate solution for RF monitoring and frequency management,’ says Wisycom Technical Support, Leslie Lello. ‘This powerful feature is designed to adapt and evolve with future software updates, ensuring that your device remains at the cutting edge of technology.’
The ultra-wideband receiver system operates from 470MHz to 1260MHz, and is equipped with ten automatically selected band-pass filters. The RF-over-fibre functionality of the MRK16 allows for reception without distance limits or heavy signal loss, while the optional EXP3 fibre module and BFLT1 transmitter make it possible to place coaxial cables and antennas miles away.
The MRK16 sports several audio outputs, including analogue (with dual DB25 Tascam wiring), digital (AES72 and AES59) and primary and secondary Dante. The device also features redundant, dual-power supply on XLR4, dual Power-over-Ethernet (PoE) and PoE output, as well as USB-C connectivity.
