The BRIT Awards returned to the Virgin Media O2 Arena for 2022, with performances from Adele, Ed Sheeran, Bring Me The Horizon, Little Simz, Liam Gallagher, Sam Fender, Dave, Anne-Marie, KSI, and Rising Star Award recipient, Holly Humberstone.
Britannia Row’s relationship with the event continues, with Josh Lloyd resuming his role as System Designer and FOH Mixer, creating a PA design that would allow the music to blend into the stage by avoiding key sightlines, while giving clear feeds to the broadcast team. ‘The design changed in the weeks leading up to the event due to the stage and seating being reconfigured in the venue, which in turn meant that I had to move the system out so as not to cover the stage runways,’ he notes.
‘The system was modified and optimised for the best possible results, achieving consistently even coverage in the room with a design that was sympathetic to the large video screens and the full visual aesthetic of the show.’Alongside the main L-Acoustics K1 hangs, he chose K2 for the side hangs due to their ability to control the directivity horizontally. L-Acoustics SB18 and Kara II were used for rear hangs, with four K2 delay hangs placed throughout the venue, and A15s used as flown fill. Cabinets of KS28 were deployed as flown centre and ground subs with A10s for fill. The system was powered by L-Acoustics LA12X amplifiers.
Despite the complexity of the task before them, Lloyd confirms that the Brit Row team were more than happy with this year’s design. ‘We’ve had such positive feedback on the system from everyone, despite it always being a real challenge to execute a large format concert for a TV show,’ he says. ‘I’m surprised each year that we manage to find ways to improve what we can offer to the BRITs audience.’

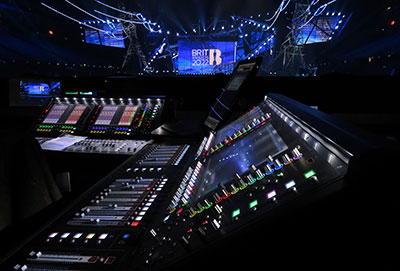

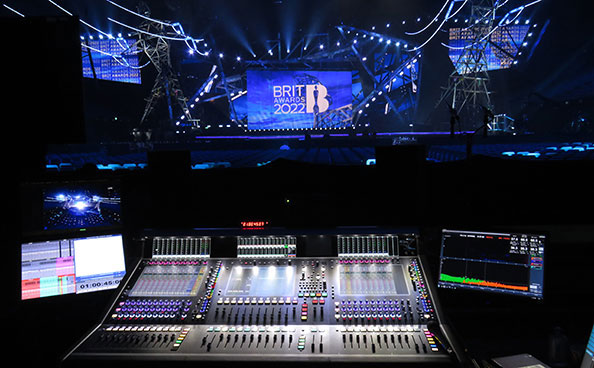

Lloyd maintained his role at FOH with a DiGiCo Quantum 7 console. DiGiCo’s were the only desks used throughout the entire event, a decision Lloyd explains came down to flexibility. Engineer Chris Coxhead ran a pair of redundant DiGiCo SD12 consoles to mix the variety of presenters, while Jon Lewis and Wayne ‘Rabbit’ Seargent had two Quantum 7 consoles for on-stage monitoring. Brit Row’s Gavin Tempany also used an SD12 for his orchestra submix during Ed Sheeran’s second performance.
Monitor engineer James ‘Kedge’ Kerridge was an incoming sound engineer, arriving at the BRITs to mix experimental hip-hop artist, Little Simz. ‘I’m always happy when I find out the house desk is a DiGiCo as I know that the file that I send over will be integrated perfectly,’ he says. ‘I like having the ability to move things around quickly without any fear of something going wrong, and they sound great! I definitely have no intention of trying anything else, as the desks do everything I want.’
Once again, Brit Row gave student placements to budding sound professionals from the BRIT School, a leading performing arts and technology education centre. Successful applicants Rhys Barratt and Hannah Woosnam-Savage, were welcomed into the Brit Row camp as part of this year’s programme and, working alongside the crew, were able to see first-hand what it takes to provide audio to a show of this scale.
Woosnam-Savage comments: ‘It was an amazing learning experience and taught me so much about largescale, live productions. In the warehouse, I helped to build racks and prepare equipment for the show. Once everything was prepped, we went through line checks and got to use the SD7s, which was very enjoyable, as I have never used that sound desk before.
‘At the O2, we helped build and fly the PA and ran cables under the stage. We also got the chance to sit through rehearsals, sound checks, and observe the FOH engineers working the show. This was very useful as this is one of my interests within sound, and where I want to focus.’
Barratt also enjoyed his placement: ‘Working with Brit Row was an amazing experience, it allowed me get a further look into everything which goes into producing the sound for an event of this that. Working within the warehouse was particularly interesting – prepping equipment which we usually wouldn’t have access to and building the custom racks with the plans. Stripping down the band risers really demonstrated the speed at which the event moved backstage with the extremely limited time available, and the high quality crew from various companies all working towards the same goal. The experience has served as a huge steppingstone in my future career, allowing me to gain an incredible insight into the depths of how these events run.’
‘It must be daunting for any 18-year-old to come into a busy work environment, but they did amazingly well,’ Lloyd reports. ‘Having Hannah and Rhys with us also fits well into the Brit Row ethos of nurturing new pro audio talent.’
Coordinating the radio systems for the BRITS was Head of RF, Lucy MacKinnon, who specified 26 ways of Sennhieser 6000, 12 ways of Shure Axient Digital, 34 Sennheiser 2000, and four Shure PSM1000 IEMs. ‘The BRITs is a huge milestone in my live sound career, more specifically as an RF Engineer, as I came up through Britannia Row Training myself,’ says MacKinnon. ‘It was incredibly important for me that every engineer who came in with the various performing artists went into the show confident in the RF that was provided for them.
‘Nowadays, wireless mics and artists on IEMs are incredibly common and the show depends on it. The UK is also very strict with licensing and therefore the challenge of coordinating over 120 channels in a very limited spectrum space required a lot of hard work.’
An additional challenge for MacKinnon was the change of requirements and extra RF kit being brought in by artists. ‘Once I’d calculated an initial plot and the show started to settle, everything began to fall into place,’ she explains. ‘The Britannia Row crew working alongside me were fantastic, in particular Adrian Roche, who dealt with all the line checks and handling of RF mics and IEMs. This, along with the high quality kit and an amazing rack design built solidly by the warehouse staff, ensured that the whole show ran smoothly from start to finish.’
More: www.britanniarow.com
