Birmingham Conservatoire

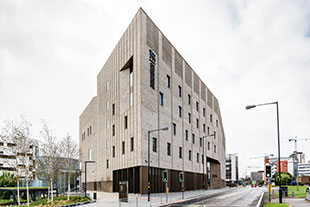

The new Birmingham Conservatoire building has opened, gaining the facility world-class status as well as a new recording and live sound production infrastructure. The equipment installed in the £57m development includes four SSL Live consoles and five SSL SuperAnalogue consoles, connected with a facility-wide Dante network.

Part of Birmingham City University, the Birmingham Conservatoire is one of the leading music and drama academies in the UK, and offers five new public performance spaces, including a 500-seat concert hall, a 150-seat recital hall, and a 100-seat organ studio. It also includes The Lab, a completely flexible black-box studio, the first permanent jazz space in any UK conservatoire (the 80-seat Eastside Jazz Club), private rehearsal rooms, dedicated teaching spaces for musicians, and more than 70 teaching practice rooms.

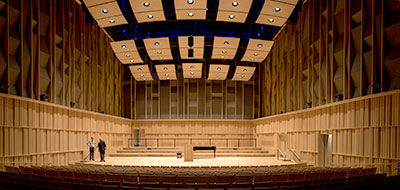

There are four main live performance spaces in the Conservatoire. The 500-seat Concert Hall is equipped with an SSL L500 live console, while the small Recital Hall, Eastside Jazz Club, and The Lab each have SSL L300 live consoles. From the stages and performance spaces, the consoles are fed by SSL ML32.32 Stageboxes and redundant Blacklight II connections via the SSL Blacklight II MADI Concentrator, with additional connections to the facility-wide Dante network, and Madi, Optocore, and analogue infrastructures.

The Conservatoire’s new Studioplex is a group of recording and production facilities that fulfil many functions, from turning the Concert Hall into a world-class ensemble recording space, to contemporary production, and Music Technology course training.

There is a 48-channel SSL Duality δelta console in the Concert Hall control room, 24-channel Duality δelta consoles in the Recital Hall and Studio 1 control rooms, plus SSL AWS 948 δelta consoles in the Studio 2 and Studio 3 control rooms. The Studio 1 control room has its own live recording space, and the two AWS control rooms both address an additional shared live recording space, allowing both control rooms to be in use at the same time, either on different projects or in ‘tandem’ teaching sessions, for example.

Music Technology was introduced to the Conservatoire in 2001 and now the department offers BMus (Bachelor of Music), BSc (Bachelor of Science) degrees as well as postgraduate courses. Dr Simon Hall is the Head of Music Technology at the Conservatoire and has been an integral part of the decision making for the recording and live production facilities. Establishing a close partnership with SSL was an important step in the process. ‘Originally, we did consider putting a variety of different manufacturers’ consoles around the facility,’ he says. ‘But for a variety of reasons we went with SSL for everything.

‘We had a good look around in the commercial world and realised that, unless there’s a real passion for a particular brand, pretty much every serious room has an SSL console in it – especially in the UK and Europe. Of course, the fact that SSL HQ is only an hour’s drive from the Conservatoire was also a big selling point for us – but in any case, SSL has an extremely responsive, reliable support team, which is important.’

Hall points out that the Conservatoire has a good variety of outboard input options for the studios, though the VHD (Variable Harmonic Drive) pre-amps on the Duality consoles themselves offer a wide range of input character. ‘That’s something I love about the Duality – you do have lots of timbral control on the way in. Having VHD on every Duality channel is fantastic. Even in a Jazz context if you want just a bit more crunch on a kick or a snare you can get that pretty easily.

‘They are calling us the digital conservatoire, but what we’re really trying to do is cement very high quality audio into the curriculum – into everything we do. The partnership with SSL is helping us achieve that.’

Birmingham Conservatoire

Flexibility was one of the key requirements for the Conservatoire’s technical provision, which is why the primary infrastructure connecting the whole facility – not just the main production spaces – is Dante. Hall: ‘We can route anything from anywhere, to anywhere else. All the consoles and all of the Rooms in the Conservatoire can be on the Network and we’re quite excited about the creative possibilities of that. Students will be able to plug into the network using Dante’s Virtual Sound Card and get to any audio from anywhere in the building.’

Ahead of the official opening, Professor Philip Plowden, Vice-Chancellor, Birmingham City University, said: ‘Birmingham has always been proud of its role as a national centre for excellence in performing arts, and the creative industries are growing faster here than anywhere else in the country – employing around 34,000 local people – and our new facility will bolster this further.

‘Birmingham Conservatoire is a significant investment for the University, the city and the country as a whole, and one in which will certainly set a new global benchmark for music and drama education and performance.’

This prediction also came with a pledge of inclusivity. Internationally renowned cellist and conductor Professor Julian Lloyd Webber took up the position as Birmingham Conservatoire Principal in 2015 and at the launch ceremony (7th he noted: ‘A building is only as effective as the people inside it, and my team and I will continue our work to ensure that the future arts industry is not dominated by the wealthy elite. Our programme of learning and widening music participation benefits thousands of children, young people and their families from diverse communities across England, and our new home will become the central hub of all of these crucial activities.

‘We are looking forward to welcoming our new and returning students in the next few weeks, as well as launching our public programme, which will formally commence with our opening season next year. The inaugural season will begin on Sunday 11 March 2018 in our new concert hall with a Royal Gala concert performed by the Birmingham Conservatoire Symphony Orchestra and conducted by the City of Birmingham Symphony Orchestra’s (CBSO) Music Director, Mirga Gražinytė-Tyla.’

The facility’s acoustic design was by Michael Whitcroft of Hoare Lea Acoustics, with John Flynn of the Acoustic Design Group acting as a consultant on the project. The systems integrator was audiovisual and IT systems specialist, Vanti.
