Hust d.o.o, a leading provider of pro A/V solutions in Croatia, has completed the design and installation of new audio and video systems for the largest conference hall of the Croatian Catholic University (Hrvatsko Katoličko Sveučilište) in Zagreb.
The idea of a Catholic University in Croatia has existed since the independence of the Croatian state in 1991, but difficult post-war reconstruction, economic and social conditions postponed the possibility until the middle of the new millennium’s first decade. The Croatian Catholic University was established in 2006, making it one of the country’s youngest universities.

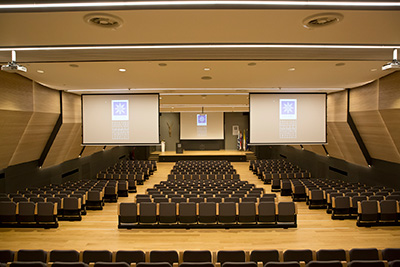

Hust was commissioned to provide the University’s main conference hall with a triple projection system and high quality audio throughout, with a focused sound system for the centre screen. To deliver uniform sound levels and clarity throughout the hall, Hust designed a distributed system using Community D8 two-way high output ceiling loudspeakers, with D10Sub ceiling-mount subwoofers adding extended response and low frequency impact. An additional pair of Community V2-28 dual eight-inch full-range two-way loudspeakers is positioned above the stage to focus sound on the main 5.5m-wide screen.
Two further 3.6m screens and three high output Epson 3LCD full HD projectors complete the video system. For people with hearing difficulties, Hust also installed a Univox induction loop system. The system is controlled by a Biamp TesiraForté, with a Windows PC-based custom interactive interface.
With basic controls, users have the ability to manage the content source, audio configuration, motorized lowering of screens and room light dimming with predefined scenes. The system is managed at several different levels of administration in accordance with the privileges assigned by user name and password. Designed as a modular system, Hust has future-proofed it to be easily expandable, both at the current location and in additional remote micro-locations, through the University’s LAN infrastructure.
‘The University is very pleased with the system,; Tomislav Stubičan of Hust reports. ‘Not only has it given them ease of e and all the flexibility they required, but by careful selection of the best products we have given them outstanding audio and video that impresses everyone that uses the room.’
