The Seattle Symphony has opened the Octave 9: Raisbeck Music Center – an intimate venue inside the orchestra’s home at Benaroya Hall in downtown Seattle – equipped with a Meyer Sound Constellation active acoustics and Spacemap spatial sound systems.
Octave 9’s street-level space was previously occupied by Soundbridge, a modest venue that hosted small ensemble performances, but the room’s limited size and low ceiling provided limited and fixed acoustical support. Looking to the future, Seattle Symphony VP of Education & Community Engagement, Laura Reynolds planned a radical transformation to create highly adaptable aural and visual environments.
‘We knew that if we were to transform this space into a venue that could serve many audiences, and be a place to experiment and explore, we would need the flexibility to create different acoustic environments,’ she says. ‘Our project partners suggested active acoustics, and Meyer Sound immediately came to mind.’
For the Seattle Symphony, Octave 9 opens a spectrum of new possibilities: ‘When we think about the future of music, we think about partnerships with artists who are redefining experiences, intersecting with many disciplines and technologies,’ Reynolds says. ‘For example, Constellation and Spacemap allow our resident composers and artists the opportunity to create site-specific works in new ways. They are treating the room itself as an instrument. Beyond that, we also think of that future as inclusive of the community, so we need a space that can adapt to everything from early childhood and elementary school programs to contemporary music concerts, meetings, parties and so much more.’
By applying digital signal processing coupled to multiple ambient sensing microphones and an array of evenly distributed lateral and overhead loudspeakers, Constellation modifies the room’s acoustic characteristics by adding early reflections and/or reverberation to create the optimum acoustics for the event at hand. Acoustic characteristics are generated using the patented Vras (Variable Room Acoustical System) algorithm.
As implemented at Octave 9, Constellation comprises 62 small full-range loudspeakers augmented by ten compact subwoofers that extend the reverberation envelope through the deep bass frequencies. Twenty-eight miniature microphones are spread across the ceiling for ambient sensing. Digital signal processing is supplied by a D-Mitri digital audio platform with 13 modules, including two D-Vras modules for separate control of early reflections and reverberation. Available system presets can instantly transform room acoustics to emulate a small room, medium room, large hall or cathedral. The suite of Meyer Sound technologies also includes Spacemap, a software-based system for exploring three-dimensional spatial sound through the dynamic movement of discrete sounds around, over and through the audience.
One artist who already is exploiting the creative potential of Octave 9 is noted composer and clarinetist Derek Bermel, currently the Seattle Symphony’s composer in residence: ‘Constellation expands the dimensions of my thinking,’ he says. ‘Generally, spatialisation is not part of my composing palette, though I have in the past placed instrumentalists offstage, in the audience or in specific places on stage to achieve a sonic effect. But Constellation allows me to adjust the space to fit a musical concept, rather than the other way around. As you can imagine, that opens all sorts of possibilities.’
Bermel expects a forthcoming concert will ‘bring the Constellation system into full effect’ as it will feature works with an electroacoustic edge from a host of contemporary composers. His own work will bring the pre-recorded Seattle Symphony into Octave 9 along with live players on stage. ‘I’m working with [composer and digital artist] Marcin Pączkowski to design custom spatialisation that takes full advantage of the loudspeakers and microphones in the space. It’s a promising new direction, and I hope it’s the first of many creative experiences with Constellation.’
Octave 9 was introduced to the Seattle music community with a non-stop, 24-hour music marathon during March. Musical selection encompassed everything from multitrack electronics to solo instruments and percussion ensembles. Composer Melody Parker, who also is the Meyer Sound acoustic engineer principally responsible for the system’s design and tuning, premiered a sound installation piece called Hearkening, which exploited the aural dynamics of both Constellation and Spacemap.

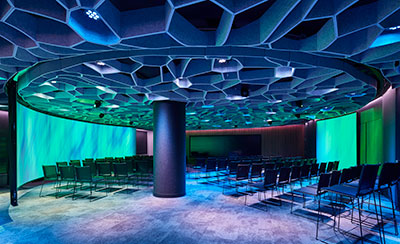

The architecture of the space, including the innovative ‘honeycomb’ acoustical ceiling, was designed by LMN Architects in Seattle working in collaboration with principal acoustical and A/V consultant Garth Hemphill of Jaffe Holden. For a full sensory experience, the sonic effects of Constellation are complemented by equally advanced visual technologies as designed by Seattle-based Belle & Wissell. Visual effects are displayed on moveable screens that can fully surround the space with images displayed on ten ultra-short throw projectors.
‘Integrating the sonic, acoustic, and visual technologies in this room was no small feat, and is a testament to the creative vision and talents of the Seattle Symphony, Jaffe Holden, LMN, and Belle and Wissell. Octave 9’s combination of adjustable active acoustics, spatial mixing, and immersive digital imagery provide a virtually unlimited palette to support both current and emerging forms of musical expression,’ says Spatial Sound Meyer Sound Director, Steve Ellison.
The response to Octave 9, from critics and audiences alike, to both the marathon and the first concerts has been encouraging: ‘At the symphony, our inboxes are filled with emails from audience members and artists who are eager to hear, see and do even more,’ says Reynolds. ‘People love the variety of programming and the new experiences we are able to create.’
More: www.meyersound.com
