As the contract for the Hyde Park festival site comes up for renewal, all involved in the production of Barclaycard presents British Summer Time can reflect on seven years at a location that had previously been considered unworkable and unviable.

That festival promoter AEG Live has proven otherwise is due in no small part to the role of their technical contractors, including Capital Sound – whose deployment of Martin Audio’s MLA multicellular loudspeaker array technology had proven its ability to meet required propagation thresholds, both inside the bowl and beyond the perimeter.

Monitored by acoustics consultant Vanguardia (as it has been every year), MLA was optimised using Martin Audio’s proprietary Display software to serve a wide range of performances over the two weekends – from Barbra Streisand, Celine Dion and Josh Groban at one extreme, to Bob Dylan and Neil Young at the other.

Capital Sound Account Manager Martin Connolly agreed that Barbra Streisand had given the system a good workout, and the vocal clarity both from her and Groban and Dion, had added a new dimension to the event as had Robbie Williams and Keane who brought British Summer Time to a spectacular close on the final Sunday.

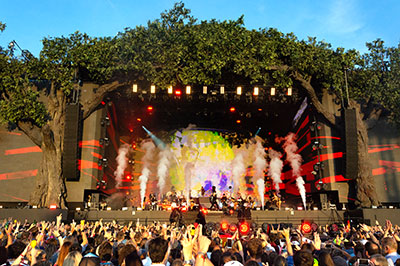

To accomplish this, the Great Oak main stage was equipped with two hangs of 16 MLA and a single MLD Downfill per side, with 13 MLA and an MLD Downfill for the sidehangs. The sub array consisted of 32 MLX in the now familiar broadside cardioid design (21 front facing, 11 rear facing). With 12 MLA Compact serving as front fill all MLA components were running on the same network.

Out in the field, the main ten delay towers comprised seven MLA and a single MLD Downfill, supported by 12 MLX subs while Delay 10 and 11 used eight MLA Compacts. One slight change this year, confirmed by Martin Connolly, was that delay position nine was bolstered with the addition of two further MLA elements in respect of the depth that the site now runs to, enveloping those at the rear of the field.

Martin Audio systems were also provided elsewhere. On the Barclaycard Stage (Stage 2), eight MLA Compacts were flown on each side with 14 WS218X subs in a spaced and recessed cardioid configuration, with four Martin Audio DD12 providing front fill sound, while two MLA Compacts were provided as out fill on Stage Left.

Production manager, Mark Ward supported Martin Connolly’s assessment that both this year’s event, and the entire seven-year programme had been an unqualified success from an audio perspective. ‘We have relied on the talents of Capital Sound and their expert use of Martin Audio’s MLA PA rig since 2013 when the British Summer Time Festival began, and this year was no exception,’ he says. ‘With a few tweaks to the system layout and drive mechanics since 2018, all sound level thresholds, both on and off site, were once again comfortably met at this notoriously difficult Hyde Park location.

‘Consequently, the paying public, the Royal Parks team, incoming engineers and the local authority were once again very pleased with how the show’s audio team and audio system delivered.’ And that audio team comprised Al Woods (crew chief), Chris Whybrow (FOH engineer) and Toby Donovan (system engineer).

‘Our seven-year relationship with BST shows that you don’t need to compromise the quality of audio for the audience in order to meet exacting off-site SPL limits,’ concludes Martin Audio MD, Dom Harter. ‘We are grateful to the whole technical team who have worked tirelessly over the years to deliver our signature sound, consistency and control to audiences across the whole site. We hope it will continue for many more years to come.’
