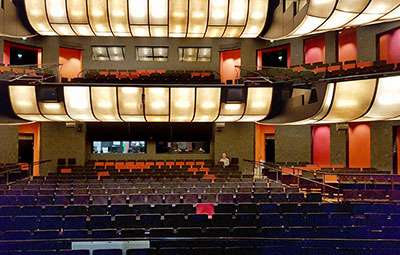

Taking advantage of the summer lull in production, the Mainz State Theatre has recently renovated its technical installation – the Stage Tec Nexus network (in use in its Small House since 1997 and Big House since 2001) has been thoroughly modernised and partially renewed. Three Cantus consoles, which originate from the first generation of digital mixing consoles from Stage Tec, arte now integrated into the audio network. For new mixing console technology, the choice fell on the latest console from the Berlin manufacturer: the IP-based Avatus. One of the decisive factors was the modular concept of Avatus, with which very individual console sizes and combinations can be assembled via Ethernet.
A 48-fader Avatus with the Nexus Star router was installed in the Big House sound control room and an Avatus with 36 faders and associated router lies at the heart of the Small House sound control room. A third Avatus with 24 faders is mobile as a remote console and can be configured as an extension of the main console in either house or as a parallel console for use in the auditorium as required.
‘Thanks to its modular design, Avatus no longer has a classic central control panel. All functions and parameters can be configured and operated via the 21-inch multitouch displays. The menu navigation and colour coding of the operating elements ensure that the user always keeps an eye on the essentials,’ explains Michael Müller, Project Manager at Stage Tec. ‘This opens up completely new working approaches and possibilities for the customer - this was found to be very exciting at the Mainz State Theatre and was one of the reasons why Avatus was chosen.’
In the Small House studio, an Aurus console upgraded with new RMDQ DSP units for recording and sound processing will be used in future.
The Nexus system, in which the Cantus consoles were already integrated, continues to be used as the audio network. The network has been extended with several new interfaces, such as the Dante Audio-over-IP interface (XDIP).
Approximately 75 per cent of the old Nexus components can still be used after a factory overhaul and an upgrade to the Matrix 5 product version: nine Base Devices from the Big and Small Houses and two stageboxes as mobile units for both houses with around 340 input and output cards.

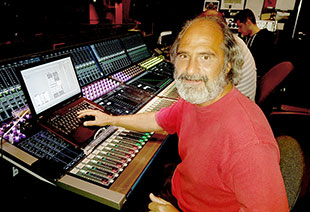

‘The switch from Stage Tec’s Cantus digital console to the Avatus IP console for us as users not only means that the user interfaces look completely different, the operating philosophy also differs considerably. But my colleagues from the sound department were already looking forward to the new console,’ says Andreas Stiller, head of the sound department. ‘Avatus had its theatrical premiere on 31st August in the Big House with Tales of Hoffmann.
The IP console operating concept has proven its worth and can prove itself again in the forthcoming complex production, The Producers.
