Texas Christian University (TCU) has embarked upon a US$118m expansion of the Fort Worth campus’ Amon G Carter Stadium, home to its Horned Frogs football team. Among many improvements, the first phase of this multi-year initiative notably involved a significant upgrade of the nearly 50,000-capacity stadium’s video and audio facilities, including a new L-Acoustics K1/Kara loudspeaker system designed and installed by local integrator, Electro Acoustics (EA).
According to EA Account Manager Ryan Walker, who has been with the firm for 20 years, the project actually marked the second L-Acoustics system to be installed on TCU’s campus. In 2015, the company installed a highly effective Kara loudspeaker system paired with SB18i subs at the school’s Garvey-Rosenthal Soccer Stadium, home to the popular Lady Frogs women’s soccer team.
‘After discussions with Ryan and Chris [Jordan, EA president], as well as our own experience with L-Acoustics at our soccer venue, we knew it would be the right choice for our football stadium,’ says TCU Senior Associate Athletic Director T Ross Bailey.

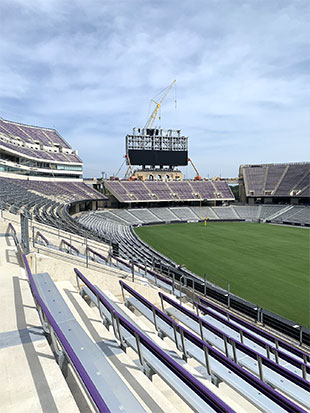

When the university announced that it would be installing a much larger video display at the top of the north end-zone seating section at The Carter, the Electro Acoustics team contacted L-Acoustics Sports Facilities Application Manager Gino Pellicano for product guidance and Soundvision design assistance.
‘Working to maximum height requirements, the new video board – a massive 100-plus feet wide and nearly 50ft tall – took most of the space, leaving less than 12 vertical feet to hang our loudspeaker arrays in the area above the display,’ Walker recalls. ‘With such tight space constraints, we needed a fairly compact loudspeaker system that could still throw 500ft and push 95-98dB at that distance when needed. Gino suggested that we use the K1, which to my knowledge is the only solution on the market that could check off each of those required boxes for us.’

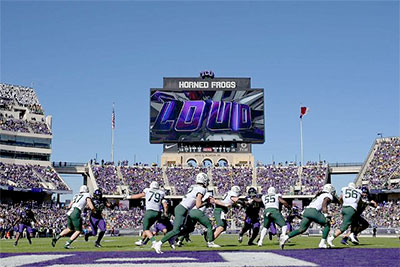

EA Systems Designer Steve Burge worked with Pellicano on the design of the football stadium’s new system, which currently features three centrally positioned K1 arrays each comprised of six enclosures firing down the field to cover the far southern half of the bowl. To address the fans on the closer northern half, 16 smaller Kara enclosures are also flown directly above the video board, divided into arrays of seven, five, and four enclosures, tailored to the heights of the nearby seating stands. Dual hangs of five SB28 subs are flown behind the centre K1 array for LF impact, and all of the arrays are visually concealed behind a scrim emblazoned with the home team’s logo.
On the underside of the display, six X12 enclosures provide down fill coverage to the areas in the shadow of the video board. Further, 12 LA12X and seven LA4X amplified controllers power the entire loudspeaker complement, which is networked via a new Milan-compliant P1 AVB processor.
With the new sound system commissioned and ready for the Horned Frogs’ season opener in late August 2019, Walker reports that the sonic improvement was immediately apparent, even to untrained ears.
‘Everyone notices the clarity of the L-Acoustics system, which is so much better than what was in there previously,’ he says. ‘The funny thing is that everyone thinks that this system is louder than the old one. It’s certainly capable of being much louder, but they’re now averaging between 88dB and 90dB for games, which is actually quieter than they ran the old rig.’
‘I would say that the sound is clearer without having to be louder, and that’s a big improvement for our fan base,’ TCU’s Bailey echoes.
Although Pellicano confirmed that the Soundvision model predictions very accurately matched the performance of the real-world system, Walker also verified those results with his own ears.
‘I was very surprised and impressed with how even and consistent the sound is throughout the entire stadium,’ Walker says. ‘The transition between the Kara and K1 coverage areas is so smooth that it’s almost imperceptible, even when you’re listening for the changeover. We had a very similar positive experience when we installed a K2 system at the new Dickies Arena here in town last year, and now two of Fort Worth’s premier venues have premium L-Acoustics solutions for an enhanced audience experience.’
