When Soundworks took delivery of Martin Audio WPS and WPC line array systems in February 2020, the Richmond, Virginia, based company was blissfully unaware that a national lockdown was just one month away. ‘The pandemic shut down all of our bookings from mid-March forward,’ recalls CEO, Steve Payne. The company had to wait until the end of summer to put the systems to work – in the shape of two socially-distanced outdoor concerts by the Richmond Symphony Orchestra.
Soundworks has been contracted to provide sound for all Richmond Symphony Orchestra’s community outreach concerts since 2015. ‘Each season, the RSO will incorporate the performance of a popular local or regional artist into one of their Big Tent gigs,’ Payne explains. ‘The arranger will write scores for orchestral accompaniment to six or so of the guest artist’s songs. Past musical artists have included a wide range of musical styles and genres, and this year’s featured artist was the Commonwealth Bluegrass Band.’

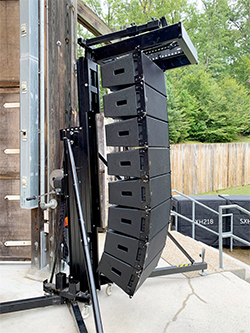

Soundworks used a September show at Maymont Park to evaluate the WPS in the delay position, with a view to future main FOH deployment. ‘The venue required that we cover a depth of 420ft, so we used two hangs of eight WPC for the main PA, with two SXH218 subs groundstacked per side, and two hangs of six WPS for delays at 22oft, with a CDD-Live 15 at each of the main hangs as out fill.
‘The conclusion was that WPS had plenty of impact and presence for use as a main system. We could not be certain that it would punch out to 290ft as required at the next gig, but felt sufficiently confident to give it a try.’

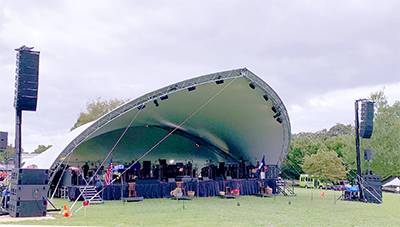

The next show followed two weeks later at Pocahontas State Park in Chesterfield, Virginia, with around 500 socially distanced people spread over an area that could have accommodated 4,000 standing.
‘The performance of the little WPS in this space just seemed to fly in the face of logic and break all the rules,’ Payne reports. ‘There was little doubt that they were entirely capable of serving as mains. The first time we fired them up at Pocahontas was quite a revelation. The sound and performance were far above what one would expect from an 8-inch box. The rig did a stellar job of providing even, high fidelity audio out to 290ft.
‘The area for both concerts, but especially the Maymont Park concert, could accommodate a crowd vastly larger than the safely distanced audience,’ he continues. ‘We do the Richmond Jazz Festival in this same space each year where audience size can approach 7,000. To cover the areas properly we are putting in systems capable of covering approximately ten times the audience size under normal conditions.’
Seating at the Maymont concert included close seating to the sides of the stage, which were out of the pattern of the WPC arrays. ‘We supplemented these areas with CDD-Live 15s on lifts at a height of about 10ft. We were very pleased with the tonal integration between CDD-Live and Wavefront Precision,’ Payne says.
Payne himself carried out the venue measurements and system design in Display 2.3. ‘Due to available amp channels [in the Martin Audio iK amps] both WPC and WPS systems were set to two-box resolution at Maymont,’ he says. ‘For the Pocahontas Park gig the WPS system was run at 1-box resolution.’ Bryan Hargrave was the system tech and Steve Payne his assistant at both gigs. Jason Misterka mixed FOH at Maymont, while Grant Howard occupied the same role at Pocahontas.
As for the music source, with acoustic bluegrass and orchestral backup they had plenty of headroom in the system. ‘The sound was full and really pleasing, while the vocals were riding on top of the mix and right in my face. It was as good as I could have wished for.
‘Both gigs were acoustic performances and so the real test put to the systems on these gigs was accurate fidelity, even coverage and long throw capability. Max SPL was never tested.’
Martin Audio’s Hard Avoid feature was used at both gigs: ‘The advantage is especially noticeable with multiple open mics and acoustic instruments on stage. On some systems low mid build-up on stage rolling back off the PA can be a problem and create the need for remedial FOH EQ.’
In this regard, FOH mixer Grant Howard says: ‘All I had to do was shove the faders up. I left the house EQ flat and I barely touched the channel EQ.’
Payne believes the main difference between a socially distanced audience vs a tightly packed audience is that the system can be run at a 6dB-to-10dB lower to achieve the same result. ‘I don’t think there is any Covid-19 in approach to tuning or EQing.
‘Martin Audio guarantees measured system performance will be within ± 1dB of the performance predicted by Display 2.3. With Wavefront Precision systems we have found that measurement systems such as Smaart are now essentially verifying target performance rather than revealing information to be used for correction. It’s very impressive.’
‘Pocahontas sounded fantastic and I heard many positive comments,’ says Richmond Symphony Orchestra Production Manager, Brent Bowden. ‘I have heard a number of different line array systems over the years, both indoor and outdoor and some key factors stood out at these shows that I really enjoyed, apart from top notch engineering. Vocal clarity was noticeable without the spike that often results from boosting the human voice above other instruments. The evenness of level in various locations was also good – especially difficult in a flat, open park with delays.’
Payne is confident that these systems will soon repay the investment despite sitting idle through the summer’s pandemic: ‘We expect WPS to be capable of covering 75 per cent of the gigs we used to cover with another manufacturer’s 10-inch system.
‘To get the kind of performance that this system delivers out of a passive, physically diminutive 60lb box with 8-inch drivers is stunning. The symphony sounded gorgeous at every seat in the house, just stupid good. I am sure it will be the first rig to leave the shop at every opportunity.
‘And of course having both WPC and WPL systems in our warehouse we can easily ramp up the performance whenever required.’
