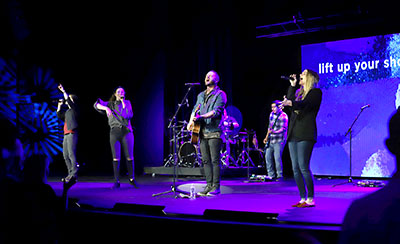

Like many churches adapting to Covid-19 conditions, the Mosaic Church in Florida’s Winter Garden is limiting the number of, and attendance at, its Sunday gatherings. However, the pandemic has not diminished the church’s music support for those services. Twice each Sunday, as many as 12 musicians and vocalists assemble on stage for an authentic worship experience before those seated, socially distanced, in the 1,500-seat auditorium.
In December 2017, following the renovation of a 78,000sq-ft former big-box store into its new main sanctuary, Mosaic Church acquired its first Klang:fabrik immersive in-ear mixing solution, installed by Altamonte Springs-based integrator AVnew. Much more recently, Mosaic Church added a second Klang:fabrik unit, further expanding what performers on stage can accomplish, and substantially lightening the load on the sound system’s FOH engineer, who previously ran some of the monitor mixes from the house console.
‘We had been running two dozen channels and eight wireless mixes off of the first Klang:fabrik unit, with another four musicians on stage hard-wired off an aux bus on the console,’ says Jeff Amato, manager of the church’s Production & Technology team. ‘We only do Sunday gatherings and don’t do rehearsals during the week – just on Sunday mornings – so we wanted to expand the number of user-controlled mixes onstage and give everyone the ability to quickly and reliably fine-tune their own mixes. The Klang:fabrik has been amazing for that and now, with two units cascaded, we’re up to 29 channels with EQ filtering across 12 mixes, with each Klang unit driving six of those mixes.’
‘They wanted a better stage experience for their musicians, giving them the ability to create even more custom monitoring environments, and doing so with a very user-friendly interface,’ says AVnew CEO, of, Gil Parente, who has also used the same approach to other churches, including Orlando’s Whole Life Church. ‘Those two things, combined with the quality of the immersive sound the Klang:fabrik provides, made it the perfect choice.’
The Klang:fabriks are connected to the church’s existing SSL L200 FOH console via Dante, which is native to the Klang units. ‘That kind of digital integration with the console is also great from both an installation and operational point of view,’ Parente says.
Amato reports that several unique Klang:fabrik features have helped the music side of worship – for example, the dedicated engineer cue mode output that can be used to send a full mix for monitoring off stage.
‘I can tap into someone on the stage’s mix and it sends me just their IEM mix output, so I can listen in and help them make adjustments without me needing to go onstage and without interrupting the rest of a rehearsal,’ Amato explains. ‘Not everyone onstage has the musical or engineering experience to dial in a well-balanced mix, and Engineer mode lets me work with them one-on-one to do that if they need support.’
In addition, an allows users to dial in and preset tonality on each channel. ‘Using the filters helps a lot in cleaning up the mixes,’ he says. ‘For instance, we can attenuate the unnecessary low frequencies on a vocalist’s microphone, which can help clean up the overall mixes. And the Klang units also take a lot of the workload off of the FOH engineer. Every user can have a starting baseline saved as a preset, which eliminates a lot of the grunt work in getting a service or rehearsal started and lets the house engineer focus on the room. The Klang:fabrik has really increased the efficiency of our workflow, but it’s also enhanced how we operate as a worship team.’
