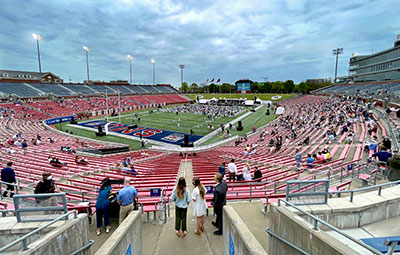

When the Highland Park United Methodist Church (HPUMC) in Dallas, Texas, planned a large-scale Easter Sunday service at a 32,000-capacity stadium, it presented Martin Audio partner Alford Media with some stiff challenges.
The stadium sits on a university campus and – while Alford Media had previously provided audio reinforcement for a number of routine graduation ceremonies at the stadium – the emphasis this time was on the 600 socially distanced seats set out for family groups on the field itself.
Alford Media holds a large inventory of Martin Audio systems and so Services Manager Ben MacKinney set about combining Wavefront Precision Compact (WPC) boxes for on field coverage with MLA Compact for the bleachers and stands. This provided the optimum outcome for a congregation numbering around 7,000 people. The Wavefront Precision series was recently recognised with a Queen’s Award for Enterprise in Innovation.
Alford Media invested in MLA Compact in April 2014: ‘We auditioned every major manufacturer to decide what would put us in a league like no other, including adjustability and changes in coverage distance, and Martin Audio’s technology ticked all these boxes,’ MacKinney says. They followed the evolution of this technology through Wavefront Precision (WPC and WPM) and today have more than 250 front line elements (as well as CDD-Live).
On duty over the Easter weekend were FOH engineer Eric Faulk and system engineer Ryan Sartell. Their task was to tame the reflections from the rear of the stadium and the consequent delay. ‘The software gave us the ability to hang the PA from towers for on-field coverage and stop the sound reverberating before it hit the back bleachers,’ the tech team says. ‘There was a pre-conceived notion it wouldn’t work because at other events with alternative brands in similar setups the slapback was terrible. We proceeded with the flown system, using Hard Avoid to prevent the sound from reflecting off the bleachers.’
Faulk and Sartell worked in tandem, the former creating a set of different show files, offering optimisations for different scenarios, the latter ‘tuning, polishing and delaying’. Sartell says, ‘Walking the stadium confirmed in real life what was in the software.’
‘On-site you are never quite sure what you are dealing with,’ Faulk continues. ‘It was the first time we had worked with the PA towers in this venue, and it gave us a bit of wiggle room to be able to change the optimal SPL, which is the most wonderful thing.’
Alford Media fielded two hangs of 16 WPC, run in one-box resolution from iKon iK42 amps and hung from PA towers. The content of the service included choir, orchestral elements and spoken word. Although requiring only a minimum of low-end extension, 12 MLX subwoofers were deployed in a cardioid set-up. Eight CDD-Live 8 and two CDD-Live 12 were added for outside front fill and six further CDD-Live 12 were used for choir fill.
The MLA Compact rig was set-up in nine groundstacks of six elements, distributed around the field, with three stacks on each side-line and three stacks in the end zone.
‘We cannot overstate the value of the single-box resolution, and it performed every bit as well as we had hoped,’ MacKinney says. ‘We entered a challenging environment with the design of the stadium and the staging layout but with the tools Martin Audio has provided us we were able to succeed. HPUMC was very happy with the coverage and quality of the sound for their Easter service. The system performed as we expected, and we have another happy customer as a result.’
More: https://martin-audio.com
