Before America’s National Football League season can begin, spring sees the annual NFL Draft broadcast informing sports fans which franchises players will be signed to for the coming season. This year’s event was held in Cleveland in late April, with 50,000 fans present each day for live events including the draft, an interactive football festival and nightly concerts.

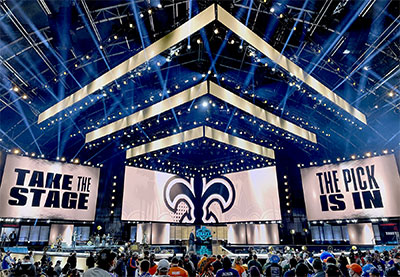

The NFL and events promoter C3 Presents again called on LD Systems as the live sound vendor for the NFL Draft. LD’s primary deployment was for the Draft Theater, a 200ft-wide by 220ft-deep and 80ft-tall half-moon structure created by Stage FX. Erected near FirstEnergy Stadium and the Rock & Roll Hall of Fame, overlooking Lake Erie, the structure housed the NFL Draft Theater Stage where all concerts and main events took place, and NFL Commissioner Roger Goodell made the pick announcements.
‘We never had any doubt that an L-Acoustics sound system would be the best tool for the job,’ says LD Systems Audio Department Operations Manager Thomas Ruffner, who worked with 2021 Draft Theater Production Manager Shawn Worlow of The Production Collective, and C3 Presents Director of Production Brandon Sossamon on system design, implementation and operation. ‘But as we experienced at both the 2019 Draft in Nashville and during the planning phases of the 2020 Draft in Las Vegas prior to that event being cancelled due to Covid, we knew to expect limitations on where and how high or low we could fly our arrays.
‘After all, the event is a live televised broadcast, so the spectacle of the set, the look of the stage with massive video walls and abundant lighting had to take priority over where our arrays could fly. And this year’s stage design featured a thrust with V-shaped runways extending over 50ft from the main stage. We were facing challenges against both aesthetics and getting the coverage we needed at the SPL we wanted without spilling a ton of energy to the very spot where each pick would be announced! Fortunately, L-Acoustics gives users plenty of tools and rigging options that help the system designer and engineer fit into those really tight spaces and less desirable locations without sacrificing performance.’

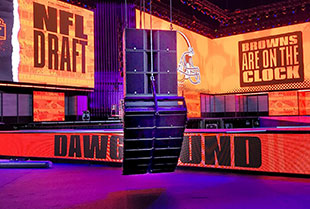

For the Draft Theater’s main left and right arrays, LD Systems required full-range bandwidth, a very short throw and a bottom trim of at least 55ft, making L-Acoustics K2 the preferred choice. ‘We flew eight K2 per side, and our site angle on those arrays ended up at -46°, so by the time we increased the angle between each box, the bottom of the array was facing nearly parallel to the floor,’ Ruffner details. ‘Above those arrays, we flew a four-enclosure hang of KS28, in cardioid configuration, which made for a ton of impact out of the mains and also kept our rigging points concentrated in a very tight area.’
To round out the side coverage where the mains could not reach, the LD Systems team flew arrays of six K2 for out fill as high as they physically could, putting the bottom trim right around 50ft.
‘The throw for the mains needed to be quite short because the NFL Network and ESPN had broadcast booths just house left and house right of the FOH mix position, but still within the structure of the Draft Theater,’ says LD Systems Audio Crew Chief and Systems Engineer, Bryan Woodall. ‘The live show was broadcast from these locations, so on those 8ft-high booths, they wanted as little energy from the main PA as possible. This meant that we couldn’t focus energy from the mains onto FOH, so we flew a centre fill array of two L-Acoustics K1-SB over six K2 set to 70° horizontal dispersion, which let them cut through to the house mix position without compromising the network booths. This is where the Panflex technology of K2 really came in handy, as we were very effectively able to tailor the dispersion pattern to where it needed to be and away from where it shouldn’t.’
For general audience coverage, which was a 500ft wide by 200ft deep area just outside of the Stage FX structure, the sound company flew two main delay arrays of four K1 over four K2, plus two out fill delay arrays of eight K2 each from the very end of the structure. In an effort to keep from compromising sightlines, the arrays were taken up about as high as physically possible.
Additional L-Acoustics systems in play included a dozen KS28 ground subs under the stage, eight Kara and eight Kiva II enclosures used for frontfill, 12 K2 on a delay tower addressing the NFL Draft Experience area 600ft out from the Draft Theater, and a stage monitoring package comprised of 16 115XT HiQ coaxial wedges and two SB28 plus two SB18 subs. The full L-Acoustics complement was collectively driven by 18 LA-Rak and three LA-Rak II amplified controller racks, all networked via LA Network Manager.
‘As expected, everything went extremely well and sounded fantastic,’ Ruffner reports. ‘But one very important detail that cannot go unmentioned is the level of support we received from L-Acoustics throughout the planning and execution of this event. We had numerous calls with Application Engineer Vic Wagner who helped us get solid answers on complex rigging scenarios, consulted with us on the design, and even participated in-person with load-in and optimisation of the rig. That’s the kind of experience we routinely get with our partnership with L-Acoustics.’
