Sky has partnered with LiveNow on a live stand-up series, the LaughNow Comedy Club, which streamed series of six 55-minute live sessions, headlined by Jonathan Pie, Spencer Jones, Reginald D Hunter, Ed Byrne, and Nina Conti and Russell Kane.

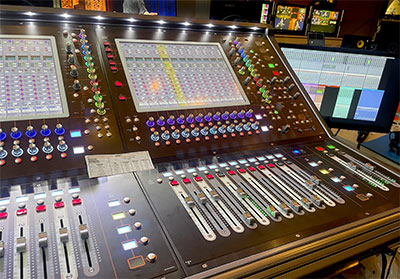

Produced with live events specialist The Manual London, LaughNow Comedy Club premiered in March from the Omeara music venue in London’s trendy Borough, where audio production company Major Tom supplied a full audio control package and broadcast record, including a DiGiCo SD12 console.

‘A Covid-secure bubble was created with physical audience members and crew tested before entering the venue, ensuring everyone adhered to strict safety precautions,’ says Major Tom Project Manager, Andy Banks. ‘One segment of the venue was transformed into a TV gallery, with the main space used for the stand-up performances.’

According to Banks, an audience of 30 joined each session, made up of TV cast members, plus 16 VIPs joining remotely via Skype. Each remote member was on a dedicated LCD screen, with the screens placed between the live audience. This helped with social distancing and meant there was a full view of the audience joining from home and in the venue for the live stream. Broadcast quality solution Skype TX was used as the brains behind connecting multiple Skype users and creating optimum on-air quality broadcast.

‘We needed the smallest footprint but full DMI capability to send an individual mix to each of the Skype users at home, so the SD12 was ideal,’ Banks explains. ‘We had 16 stereo mixes as well as the venue PA and foldback, and a record feed, as well as multi tracking on Madi. In fact, it was really useful to be able to output Madi to a recorder for multitrack for postproduction mixdown. This was mostly used in the live mix and tweaked after the event.’

Skype TX also provided the team with a single control surface to manage audio and video processing from 15 Skype calls. ‘Three Quick Link TX quad four-channel servers and three NewTek VS100 single channel units provided HD SDI video and Dante networked audio,’ adds Major Tom’s, Adam Wells. ‘This system provided individual HD SDI video feeds from virtual audience members, and a stereo pair of audio channels via Dante Virtual Soundcard from each caller.’

Return video in the form of HD SDI programme and a dedicated mix-minus aux send – again over the Dante network – provided a full broadcast experience for virtual audience members to enjoy the show, offering a true sense of being immersed in the crowd and experiencing the event as if they were actually there.

Acting as the system clock for the Dante network, a DiGiCo DMI-Dante 64@96 card in the SD12 console allowed Wells to receive and send audio to any device on the network. ‘This included not only the virtual audience environment but video playback machines,’ he explains.

The Dante network was managed by four Luminex Gigacore10 switches, providing Dante audio and a stable internet connection required for Skype TX. ‘The real-time bandwidth monitoring feature in Araneo, the Luminex control application, proved to be an extremely useful feature for us,’ continues Wells. ‘As usual, Dante controller provided the management interface for routing of all Dante audio channels to and from the DMI-Dante card.’

Finally, a discreet talkback system was put in place to allow the Skype virtual audience moderator to communicate with the virtual audience directly, giving advice and technical support where needed.

‘All routing to manage this was handled by the SD12, which executed its job flawlessly,’ concludes Wells. ‘The last live session took place on 23 April, and we are extremely pleased to say that all six shows went really smoothly and the audio quality was absolutely brilliant. What we really love about the SD12 is its versatility and compact footprint. No matter how complicated the set up or outputs are, the SD12 just does the job. It’s like having a powerhouse in a match box – we love it.’
