London’s South West Four Festival (SW4) is the most recent call for Capital Sound and the advanced controllability of its flagship Martin Audio MLA loudspeaker array. This time it was needed to contain the energy delivered by a host of international DJs and dance music specialists, on a site closely surrounded by residential buildings.
Promoter Andrew Mattle of Lock N Load Events had called in Capital Sound and its MLA last year for the main stage; this year the use of MLA and MLA Compact was extended to other stages. ‘There had been criticisms in social media about how quiet the sound [at SW4] had been for a dance event, and Andrew was curious about whether by using MLA we could get the SPL up on site while at the same time containing it,’ says Capital Senior Project Manager, Martin Connolly.
Mattle had become aware of the Martin Audio system through ‘general industry buzz’, adding, ‘We are always looking for PA systems that might improve the levels we get at Clapham.’
After successfully debuting MLA at the 2014 event, Capital Sound succeeded in fielding Martin Audio systems in all five locations. MLA was able to work within the measurements set by consultants Three Spires Acoustics for an audience capacity of 30,000.

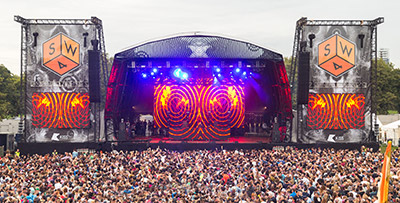

With MLA tech Joseph Pearce employing the standard MLA site preset, the extreme width of Main Stage (which hosted headliners Faithless, Eric Prydz on the Saturday and Skrillex and Basement Jaxx on the Sunday), and lack of depth negated the need for delay towers but required a tailored approach to avoid sound spillage out wide.
Thus production flew 13 MLA plus a MLD Downfill as the main hang down each side, but instead of flying side hangs at the customary 45° angle for out fill, two drops of eight MLA Compact elements were set on the same plane as the main system but 24m apart. Explaining the decision, Martin Connolly said: ‘A conventional side hang would have radiated too much energy offsite into noise sensitive areas on both sides.’
A broadside cardioid array, of 20 MLX subs boosted the low frequency, and a further 12 W8LM Mini Line Arrays were used for front fill.

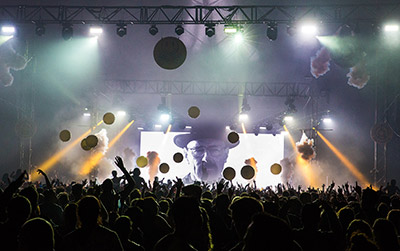

The main 75m x 55m (10,000 capacity) Stage 2 tent (known as Fatboy Slim’s Smile High Club on the Saturday, and decorated with his signature smiley face) saw a further eight MLA and MLD Downfill per side, with six MLX subs set on each side in an LR cardioid arrangement, with four Martin Audio W2 as front fill and LE1500 floor monitors on stage. ‘With this design we were able to produce a lot more bass ‘thump’,’ Connolly says. ‘We were flying from a mast and were able to stack all the subs on the base of the mast.’
Meanwhile, another globally famous DJ, Sven Vath was appearing on the 60m x 45m Stage 3 (dubbed Dream Don’t Sleep Arena). Capital used 12 MLA Compact and six MLX per side, the subs again in cardioid LR configuration. Stage 4 was fitted out with six MLA Compact elements, ground stacked along with four WS218X on each side, in an end-fire design with three W8LM in fills per side. Finally, a Martin Audio W8LC Compact Line Array provided the Stage 5 sound.
Reflecting on the event, Martin Connolly believes: ‘Upgrading to MLA and MLA Compact in most key locations produced a superior overall SPL – particularly at the rear of all tents, which were generally bigger structures than last year. On main stage the power of MLA at the back provided superior clarity in an area with only 45m between stage and FOH mix position.
‘The aim was to deliver the same sound experience to everyone – whether they were at the front or back – and we achieved that.’
Mattle confirms: ‘It was our satisfaction with how well MLA performed on main stage last year that prompted the decision to use it more extensively this year – and we were equally happy with the result.’
