A major upgrade to the Sway Bar in London Holborn’s fashionable Great Queen Street has given it a cool New York vibe and a new audio system.

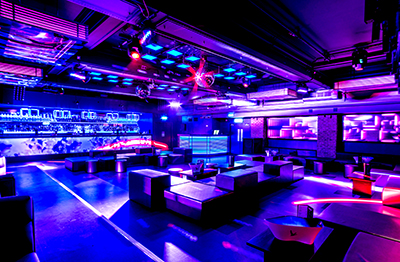

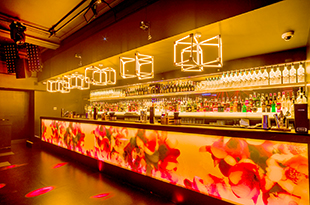

Of the venue’s five rooms, three were earmarked for a major technical and design overhaul as part of the £1m refurbishment, and Middlesex Sound & Light (MSL) specified Martin Audio’s new CDD (Coaxial Differential Dispersion) installation range of loudspeakers in each. The spaces concerned were the now sophisticated basement Cocktail Bar (previously Crystal Bar) and Club Room (a conversion of the former Groovy Wonderland), as well as the Ground Floor Bar and kitchen upstairs. MSL also installed new lighting.

Novus Leisure Project Manager Graeme Sutherland says that the aim was to bring a traditional 1980s-style disco into the modern age, and give the venue greater flexibility, with the ability to host third-party conferences downstairs as well as up. This required a versatile sound system, since the venue trades all day, six days a week, feeding both background music at low level from a Kaleidovision multi-zone player in the daytime before the DJs ramp up the volume on the Pioneer CDJs in these locations after dark.

In the upstairs bar and kitchen, MSL has installed eight Martin Audio CDD8 speakers, with two CSX212 (2 x 12-inch) subs handling the low frequencies and two CDD6 as fills. Downstairs in the Cocktail Bar the music is pumped out via six CDD12 (12-inch) speakers, while two of Martin Audio’s AQ215 (2 x 15-inch) subs from the previous installation have been reused. Meanwhile, the Club Room now boasts a powerful sound output generated from four CDD15 (15-inch) and two CSX218 (2 x 18-inch) subs.

Each area also has its own independent input point and is controlled from an amp rack in the basement. Sound levels and thresholds are programmed into BSS Soundweb, with additional output expansion and local input/volume control, and specially created parameter presets reflecting the different type of functions hosted at Sway. In some instances this enables the Martin Audio subs to be muted, leaving the mid/highs to operate as full-range boxes.

All the flown CDDs downstairs are set in landscape orientation (with the exception of the CDD15s), and upstairs they are finished in white to work with the new décor conceived by Terri Naylor at Dakota Design.

This is the latest of numerous installations of Martin Audio’s CDD series in less than a year since its launch, while the operators themselves have a tradition of using Martin Audio speakers. MSL director Darrel Olivier says much of this is due to the support they receive from the manufacturer and the versatility of the mounting hardware. ‘We also love the aesthetics, the sound quality and dispersion pattern of CDD and the fact that it can be used discreetly. It is our go-to solution, which accounts for why we have already installed more than 400 of these enclosures.’

Sutherland says that the system meets all the requirements for improved sound as befits the new streamlining of the operation: ‘This is a big multi-room venue in a strategic location; it’s a lot more open than previously, with a realigned entrance, and the new refurbishment will certainly benefit the customer experience.’
