Lab.gruppen has extended its reach with the launch of a dedicated installation amplifier range called Lucia.

Lab.gruppen LuciaAddressing the needs of the A/V contractor, the two-channel Lucia (Localised Utility Compact Intelligent Amplification) is a compact and versatile Energy Star compliant class-D amplifier platform that has been designed with speed of install and easy configuration in mind. Lucia combines low-impedance amplifier electronics with advanced DSP in the smallest package the company has yet produced.

Lucia targets small-scale A/V applications where high-quality audio is required without the complication and additional cost of a distributed system with centralised rack-mounted amplification, matrixing and processing.

Suited to corporate boardroom, classroom and small lecture theatre, museum multi-media areas and retail unit installations, the Lucia range comprises of four models in two power configurations – 2 x 60W and 2 x 120W – each available with either 4-input/4-output matrix-mixer and configurable DSP features (Lucia 120/2M, Lucia 240/2M) or in a basic 2-input/2-output configuration (Lucia 120/2 and Lucia 240/2). While all models are equipped with DSP pre-configured ‘out of the box’, the Matrix variants also facilitate easy set-up via USB connection (with Windows and Mac Lucia configuration software) to unlock the full potential of the processing and mix-matrix to meet specific system requirements.

Featuring Lab.gruppen limiters and EQ, and processing algorithms evolved from TC Electronic’s System 6000, Lucia introduces advanced DSP features – a new Enhanced Bass Profile promises ‘greatly improved LF performance from standard full-range in-ceiling or surface mount loudspeakers, to the extent that the need for a separate subwoofer may be negated’. There is also an Auto Load Sense feature, measuring the impedance of a connected loudspeaker load and adjusting itself accordingly to deliver full power, at all impedances (2Ω-8Ω). All Lucia models also have intelligent fan control for silent operation at low volume, and low-noise at high output when fan is operational.

‘Lucia breaks new ground for Lab.gruppen, drawing on our knowledge and expertise in powerful, energy efficient amplification,’ says Klas Dalbjorn, Lab.gruppen’s Product Research Manager for Install Products. ‘Like E Series, Lucia is Energy Star compliant, and is built upon proven class-D technology. The ease of install, ease of use and relatively low through-life cost make this a very compelling choice in today’s marketplace.’

Each Lucia model can drive up to 16 speakers on a localised low-impedance system (8 per channel with a 16Ω load). Tailor-made presets will be made available for Tannoy’s commercial loudspeaker ranges, along with additional hardware accessories to provide mounting flexibility.

Key features:

  • Max. output power across range of loads – 2 x 60W (Lucia 120/2) or 2 x 120W (Lucia 240/2) into 8Ω, 4Ω or 2Ω
  • 4 x 4 mix matrix** – Route internally to amplifier or to line-level outputs
  • Comprehensive DSP features – Per channel presets for high-pass filter**, parametric EQ**, multiband compressor, look-ahead limiter
  • Configuration Software** – Windows and Mac software wizard for initial set-up, advanced editor for preset configuration (connection via USB)
  • Default preset mode – Works out of the box for common applications with no configuration
  • GPIO – Remote control (eg. Wall panel) for channel switching, level – integration with paging systems

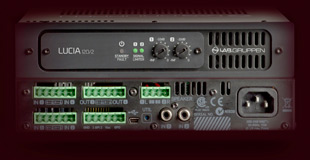

  • Compact form factor – Half-rack, 1U chassis and supplied bracket for discreet on-wall mounting (eg. behind display screens)
  • Class-D amplifier – Patent-pending design
  • Auto Load Sense – Proprietary auto-set VPL (Voltage Peak Limiter) for optimum performance with connected load
  • Fail-safe operation – Comprehensive short circuit, thermal, and under-voltage protection
  • Balanced and unbalanced (RCA) inputs – Connects to any input source
  • Universal power supply – Operates at 100 – 240V AC (50/60Hz)
  • ENERGY STAR® compliant – Conforms to green building standards
  • Auto standby and wake-up – Standby power consumption less than 1 W
  • Intelligent fan control – Silent operation in idle and at lower output levels
  • CE, CSA, CCC and PSE approval – Conforms to building codes worldwide

(** Matrix models only)

More: www.labgruppen.com
