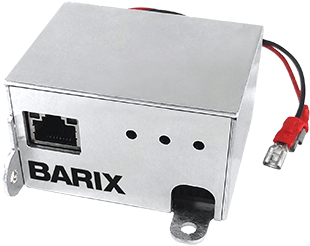

Replacing the 70/100V transformer traditionally used with analogue loudspeakers, IP Former is Barix’s latest innovation for adding IP networking capabilities to new or existing loudspeaker designs. The PoE-powered add-on provides an IP network interface, audio stream decoder and amplifier front-end for any 2Ω or 8Ω speaker.
IP Former offers a broad array of benefits for everyone from systems integrators and end-users to third-party manufacturers. By using IP Former in place of standard transformers, systems integrators can continue using their preferred loudspeaker brands and models while bringing them into the IP domain. Existing installations can similarly be retrofitted with IP capabilities by simply replacing their transformers with IP Former units, saving the end-customers considerable money by avoiding the need to purchase entirely new speakers.
‘Integrators often have particular loudspeaker brands and models they prefer to use in their system designs, but which may not be available in IP-enabled configurations,’ says Barix Head of Marketing, Manuel Merki. ‘Rather than sourcing a different speaker line, these integrators can use IP Former to easily add IP functionality to their existing favourites. IP speakers can also be expensive, so IP Former offers a cost-effective alternative to make IP-based audio infrastructures affordable.’
For loudspeaker manufacturers, IP Former provides a fast and reliable path to bringing IP-enhanced products to market by eliminating the extensive R&D effort, time and cost of creating their own IP implementations from scratch. Just as important, IP Former’s mounting and connection compatibility with standard 70V and 100V transformers enables OEMs to incorporate the Barix module without any changes to their manufacturing processes.
‘IP Former lets speaker manufacturers leverage Barix’s 19 years of proven experience in developing robust IP audio solutions, rather than taking the costly time and effort to build up their own knowledge and resources,’ Merki explains. ‘Given the high volumes of speakers that many vendors produce daily, changes to their manufacturing processes are also costly. By connecting and mounting the same way as a transformer, IP Former lets them keep their manufacturing processes exactly the same, right down to the screws.’
IP Former is based on the IPAM 400, Barix’s latest-generation IP Audio Module, and was built with all of the latest IP and IT security standards in mind. The device leverages Power over Ethernet (PoE) through its RJ-45 network interface to minimise cabling and simplify installation by eliminating the need for plugging into a power outlet – suiting it to installation in locations such as ceilings. Flexibly supporting applications ranging from background music and in-venue announcements to paging and emergency warning systems, IP Former decodes audio streams delivered via HTTP, RTP or UDP in codec formats including PCM, AACplus, MP3, Opus, G.711 and G.722.
Barix’s Sonic IP method audibly announces each IP Former unit’s automatically assigned IP address during initial setup, while a straightforward web-based interface allows configuration. Barix’s Flexa customisation layer enables integrators and manufacturers to write and deploy their own custom programs on IP Former, such as triggering playout of messages stored locally on the device. IP Former also supports SIP negotiation for use with VoIP phone systems, and is compatible with InformaCast and Syn-Apps mass notification platforms.
‘Customers often have large numbers of speakers distributed throughout their buildings, and depend on them for important communications,’ Merki says. ‘Systems integrators and OEM vendors need to pair them with a trouble-free IP module that they can count on to be reliable and long-lasting. Barix is delivering exactly that with the introduction of IP Former.’
More: www.barix.com
