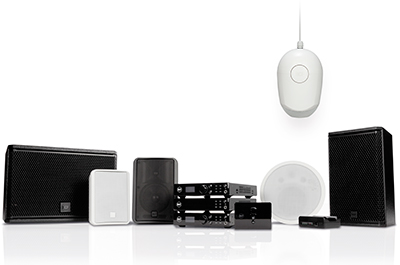

RCF has expanded its installation range for architects and installers with a new application-focused series of products conceived for background and foreground music. The Business Music range is intended for small-to large-installations, providing multiple audio feeds to multiple environments, each with level and equalization.
The target application range is extensive and varies from retail stores to bars and restaurants, meeting rooms, education or public facilities, and in general, to any A/V application. The line includes amplifiers, DSP, microphones, and speakers, combining high sound quality, processing and easy configuration.
The Business Music range amplifiers are compact size (half-rack unit width and full rack unit height) units suitable for both desktop and rack installation, and a design that crosses professional and consumer markets with contemporary style and environmental robustness (IP 30 protection grade and high-efficiency thermal dissipation). There are two Digital Mixer Amplifiers models, the DMA 82 (2x 80W) and DMA 162 (2x 160W), combining a Matrix/DSP platform with recallable speaker presets. The OLED front panel makes set-up user friendly, with configuration also possible via the RCF’s RDNet software, using an optional board. It’s also possible to control some of the device features from third-party systems via serial protocol. DMA can distribute four audio channels to satellite DMA-P units, allowing easy installation and scalable architecture.
With onboard digital signal processing, the DMA 162P (2x 160W) amplifier increases the installed power in a multi-room architecture. One analog stereo input and 4-channel bus (via Cat5 cables) can be routed to power outputs via DIP switches. DSP configuration and presets only via RDNet. Each unit can receive four mono or dual stereo channels from the 4-channel audio bus, with a local stereo input as an alternative. Line output for the subwoofer is also available.
Expanding the feature set further are the RC 401 Remote Control and BM 404 Paging Console that work in conjunction with the DMA units. RC 401 offers Volume Control and Source Select; BM 404 Microphone base can manage up to four zones, with up to four paging consoles connected in a daisy-chain fashion, interlocked.
Loudspeakers for Business Music applications offer an acoustic performance inspired by RCF’s top-of-the-line professional products with high-value industrial design features. MF 33EN is a discreet ceiling speaker designed for recess installation in false ceilings or panels, with a 100°x160° coverage angle for both 8Ω and constant voltage lines. For horizontal or vertical wall-mount installation, the WMF 33EN speaker is available.
The self-extinguishing EN54-24 certified enclosure and the highly intelligible voice reproduction make it also perfect for voice alarm and evac messages. Surface-mount monitor speakers – the MR 40T and MR 50T (in white or black self-extinguishing plastic cabinet) – are two-way bass reflex speakers for high-quality background music reinforcement, available with or without line transformer.
More: www.rcf.it
