Genelec has made its 6010A Bi-Amplified Loudspeaker System and matching 5040A Active Subwoofer available in dark ‘Mystic’ black.

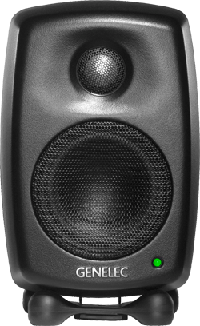

Genelec 6010AThe 6010A is Genelec’s smallest speaker system to date, and is designed for computer sound systems, workstations, MCRs and other close-field applications.

Designed as an active loudspeaker, the 6010A contains proprietary drivers, advanced power amplifiers perfectly matched to the drivers, active crossover filters and protection circuitry. The 6010A has a die-cast all-aluminum Minimum Diffraction Enclosure (MDE), which features large internal volumes, softly curved edges and outstanding mechanical strength.

The 6010A also incorporates Genelec’s advanced Directivity Control Waveguide (DCW), which provides an amazingly smooth on- and off-axis response, while the long, curved reflex port ends in a wide flare for excellent bass articulation.

The monitor uses a 3-inch bass driver along with a 0.75-inch high-frequency driver loaded into a Genelec DCW. The free field frequency response is 74Hz to 18kHz (±2.5dB). Maximum peak SPL output per pair with music material is 102dB. Bass and treble drivers are each powered by 12W amplifiers.

The 6010A is magnetically shielded for use in environments where video monitors are in close proximity. Additionally, the 6010A has a hard-wearing painted outer surface.

The 5040A subwoofer extends the LF response down to 35Hz. The playback level for the whole system is controlled by remote volume control provided with the 5040A subwoofer. With five main input/output channels and a dedicated LFE channel with 85/120Hz reproduction bandwidth selection, the 6010A/5040A system meets the needs of 5.1 productions.

The 5040A is designed to complement up to five 6010A active monitors in stereo and surround applications, or a pair of the larger 8020As in a stereo configuration. The subwoofer features a single 6.5-inch proprietary driver with a 40W power amplifier. It has a frequency response from 35Hz to 85Hz (±3dB), and the ability to deliver short-term sine wave of 96 dB SPL. The built-in crossover unit features six RCA input connectors for five main channels and LFE channel and five RCA output connectors for the 6010A loudspeakers. The main channels have a fixed high pass filter to work with the 6010A while the LFE channel can reproduce signals up to 120Hz. In addition to the RCA input connectors, a 3.5mm stereo jack input connector is also active and mixed for convenient connection to portable audio players or computers.

Adjustable input sensitivity, in combination with adjustable crossover phase, allows a seamless integration between the 5040A subwoofer and the main speakers. Bass roll-off rate and input sensitivity can also be adjusted to suit different acoustical environment and subwoofer position.

More: www.genelec.com
