Hedd,Type 05/Type 07/Type 30

Hedd (Heinz ElectroDynamic Designs) has been launched by physicist and music enthusiast Klaus Heinz, the founder and former long-term head of R&D at Adam Audio. The new company has entered the professional audio market with three studio loudspeaker monitors – the Type 05, Type 07 and Type 30 – part of Hedd’s Series One.

Hedd Type 30Each model features new materials, soft black modern unibody cabinets, the latest generation of ICE power amplifiers, and a sophisticated Air Motion tweeter design (Hedd AMT), intended to result in ‘very precise and effortless’ reproduction. Hedd has also developed a modular input card system called the Hedd Bridge, adding optional Audio-over-IP (Dante and Ravenna), AES3, USB2 or wireless cards to the loudspeakers –the first loudspeakers to combine analogue monitoring with the ability to understand audio-related protocols over Ethernet. All models are fully HEDD Bridge compatible.

Type 05 Close-field studio monitor:
· Handcrafted Hedd Air Motion Transformer (Hedd AMT).
· 5.5-inch woofer with honeycomb sandwich structure.
· Front plate LEDs for on/standby, overload and digital synchronisation.
· XLR and RCA inputs.
· Latest generation ICE power amplifiers (2x 50W RMS).
· Frequency response: 46Hz–50kHz.
· Crossover frequency: 2.6kHz.
· Max Peak SPL: 110dB.
· Dimensions: 308mm x 180mm x 228mm.
· Weight: 7kg.

Type 07 Close-field studio monitor:
· Handcrafted Hedd Air Motion Transformer (Hedd AMT).
· 7-inch woofer with honeycomb sandwich structure.
· Front plate LEDs for on/standby, overload and digital synchronisation.
· XLR and RCA inputs.
· Latest generation ICE power amplifiers (2x 100W RMS).
· Frequency response: 38Hz–50kHz.
· Crossover frequency: 2.4kHz.
· Max Peak SPL: 114dB.
· Dimensions: 370mm x 220mm x 300mm.
· Weight: 10kg.

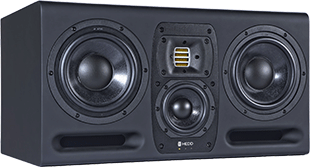

Type 30 Mid-field studio monitor:
· Handcrafted Hedd Air Motion Transformer (Hedd AMT)
· Twin 7-inch woofers with honeycomb sandwich structure
· Front plate LEDs for on/standby, overload and digital synchronization
· XLR and RCA inputs
· Latest generation ICE power amplifiers (4x 300W RMS)
· Frequency response: 30Hz–50kHz
· Crossover frequencies: 200Hz/2,500Hz
· Max peak SPL: 126dB
· Dimensions : 280mm x 530mm x 339mm
· Weight : 22kg

More: www.hedd.audio
