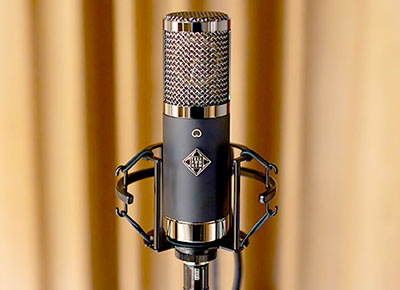

Telefunken Elektroakustik has launched the TF17, newest voice in the Alchemy Series and latest vintage-inspired phantom-powered condenser microphone.

Combining mid-forward ‘German’ voicing with modern FET technology, the TF17 is offered as sonically bold with a punchy transient response, high SPL handling and low self-noise.

Telefunken TF17The TF17’s extended low-frequency response, strong midrange and smooth top-end are suited to vocals, drums, electric guitar and piano. The mic features a K47-style centre-terminated capsule, premium through-hole components and a UK-made OEP/Carnhill transformer with high-grade nickel-iron core. It has been designed with a broad variety of recording applications in mind – home, the studio and the stage.

Designed and assembled by hand in the USA, the TF17 provides depth and detail with extended low frequency response, bold midrange, and a smooth top end.

Key specifications:

  • Type: FET condenser.
  • Polar Pattern: Cardioid.
  • Frequency Range: 20Hz–20kHz ±3dB.
  • Power: +48V Phantom Power.
  • Capsule: TK47S.
  • Transformer: OEP/Carnhill T217.
  • Sensitivity: 12mV/Pa, ±1dB.
  • THD at 1kHz at 1Pa (Amplifier): 0.01%.
  • Output Impedance: <200 Ω.
  • Maximum SPL (for 1% THD): > 135dB.
  • S/N Ratio: 91dBA.
  • Self Noise (Amplifier): 3dBA.
  • Dimensions: 175mm (l) x 46 mm (diameter).
  • Weight: 545g.
  • Accessories: Shockmount, stand mount, mic sleeve, case.

More: www.telefunken-elektroakustik.com/product/tf17
