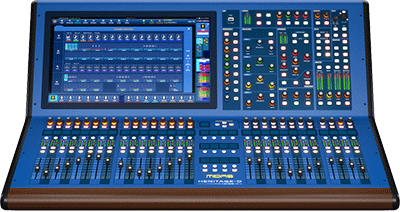

Building on the legacy of the H3K and Pro Series of live mixing desks, the Midas Heritage-D HD96-24 Live Digital Console Control Centre features 144 input channels, 120 mix buses, 96kHz sampling and 21-inch touchscreen.
The console’s Shout Mixer allows complex communication groups to be easily created and stored. Sixteen shout inputs (independent of the input and output channel count) can be used to create talk systems with 12 dedicated outputs. Instant recall allows different settings to be used for soundchecking and the show.
The console can identify a source and suggest gain, EQ, compression and gate settings if required via a friendy user interface that allows users to decide which offered settings to use. Adaptive presets allow users to pick the style of sound.
New tap off points on channels allow signals to be sent from any point in the signal path. This gives greater flexibility for sending signals to stage before any element of processing has been performed.
For the first time on a Midas console, post insert fader points are available, and all processing options orders can be changed by dragging and dropping in the required order. The Flexi-Aux system provides the ability to send aux to aux for group or stem style mixing.
Key features:
- Up to 144 simultaneous input channels @ 96kHz sample rate.
- 120 time-aligned and phase-coherent mix buses.
- Full colour TFT display screen with capacitive touch sensing.
- Multi-gesture touchscreen user interface.
- Midas microphone preamplifiers
- Dual network bridge format converter with up to 128 bidirectional channels and asynchronous SRC.
- 24 VCA (variable control association) and 24 POPulation groups.
- Up to 24 multichannel digital signal processing effects engines with up to 96 effects.
- Integrated Wireless transceiver module.
- Dual Ultranet Ports providing 32 additional digital outputs.
- 28 Midas Pro 100mm motorised faders.
- Fully interpolated touch-sensitive controls.
- Dual redundant auto-ranging universal switch-mode power supplies.
More: www.midasconsoles.com
