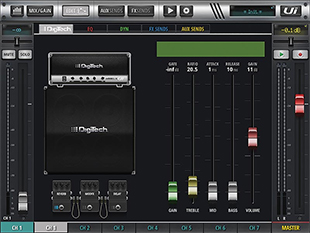

Soundcraft’s Ui Series of remote-controlled digital mixers feature an integrated, onboard Wi-Fi router and are controlled via an HTML5 compatible browser on any tablet, PC or smartphone.
The Ui12 and Ui16 offer cross-platform compatibility with iOS, Android, Windows, Mac OS and Linux devices, and can use up to ten control devices simultaneously. In addition, the Ui12 and Ui16 each feature built-in Harman signal processing from dbx, DigiTech and Lexicon, including dbx AFS2, DigiTech Amp Modeling. Both mixers have fully recallable and remote-controlled mic gain and phantom power, along with four-band parametric EQ, high-pass filter, compressor, de-esser and noise gate on input channels.
Both models also have a 31-band graphic EQ, noise gate and compressor on all outputs, plus real-time frequency analyser (RTA) on inputs and outputs. Built in are three dedicated Lexicon FX buses: for reverb, delay and chorus. Mixer controls include Subgroups, Mute groups and View groups.
The Ui Series mixers feature full Show/Snapshot recallability with channel recall safes, while security lockout features allow customisation of device access to only specific functions and mixes if needed. Both mixers also offer independent network interfaces on board for simultaneous control by Wi-Fi and Ethernet, plus a floor-ready rugged chassis for live applications.
The Ui12 also features four XLR combo mic/line inputs, four XLR mic inputs, two channels of Hi- Z/instrument inputs, as well as a stereo RCA line input. A two-channel USB media player is provided, along with two balanced XLR Aux outputs, two quarter-inch headphone outputs with level control, plus balanced stereo XLR and quarter-inch main outputs. Two-channel USB audio playback is compatible with MP3, WAV and AIFF formats.

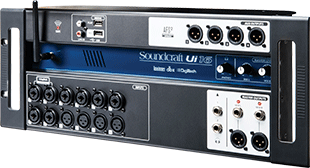

The Ui16 boasts eight XLR combo mic/line inputs, four XLR mic inputs, two channels of Hi- Z/instrument inputs, as well as a stereo RCA line input. A two-channel USB media player is included, along with four balanced XLR Aux outputs, two quarter-inch headphone outputs with level control, plus balanced stereo XLR and quarter-inch main outputs. Two-channel USB audio playback is compatible with MP3, WAV and AIFF formats, and two-channel USB Record direct-to-memory devices functionality is possible as well. The Ui16 also has an HDMI display output.
More: www.soundcraft.com
