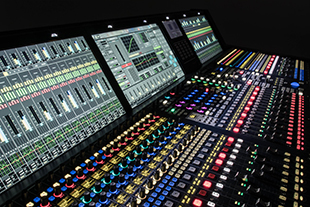

The Lawo mc²56xc is the latest addition to its mc² family of digital audio broadcast mixing consoles.
The console comes in 32-, 48-, 64- and 80-fader frame sizes and a Lawo Nova73 core. The console supports up to 888 fully configured DSP channels, up to 144 summing buses and have an 8,192 x 8,192 mono-channel matrix capacity, as well as native Ravenna/AES67 support. An updated user interface features an overbridge with super-bright 21.5-inch HD touchscreens, button-glow for colour-coding and enhanced user guidance.
Combining the audio processing capabilities of the mc² series with the touchscreen operation of the Lawo mc²56 and the extended control interface of the mc²66, the mc²56xc’s extended free control section gives direct access to a greater number of parameters – offering a balance between channel strip and central section control workflows.
The console supports both global and individual parameter assignments of all free controls in each channel strip, with colour-coded indication for a at-a-glance overview of user-defined functionality. The metering bridge shows all fader levels clearly on the console’s HD touchscreen displays, with multi-row metering for easy viewing of signals from other layers or banks. For further customisation the overbridge also accommodates integration of additional modules, such as a user panel or RTW goniometer.
The mc²56xc can be custom configured to address a wide range of workflow requirements.
More: www.lawo.com
