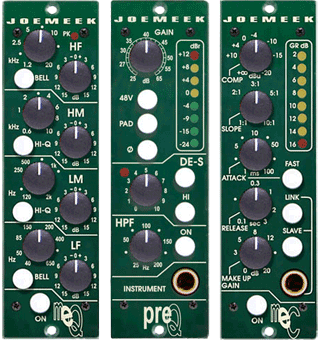

JoeMeek has announced its first 500-Series units in the meQ Meequaliser, preQ Preamplifier and meC Compressor.
The Meequaliser is a four-band parametric EQ, with switchable wide/narrow bell on the high-mid and low-mid bands, and bell and shelf modes on the high-frequency and low-frequency bands. The Preamplifier includes a de-esser and a high-Z input on the front panel. The compressor, meanwhile, can be linked to another meC via a 6.5mm TRS jack on the front for stereo operation.
Meequaliser features:
· HF (1.2kHz-20kHz, ±15dB) with shelf/bell switch
· HM (600Hz-10kHz, ±15dB) with wide/narrow switch
· LM (120Hz-2kHz, ±15dB) with wide/narrow switch
· LF (40Hz-650Hz, ±15dB) with shelf/bell switch
· Peak LED indicates 6dB signal level
Preamplifier features:
Preamplifier features:
· Gain trim
· Switched 48V phantom power
· Switched 20dB pad (XLR input)
· Phase reverse switch
· De-esser with swichable frequency
· Switchable high-pass filter (25Hz-200Hz)
Compressor features:
· Compression threshold and ratio (slope)
· Gain reduction display
· Attack (1ms-100ms) and release (0.1s-3s)
· Fast attack switch
· Makeup gain (0dB-20dB)
· Link and Slave switches
More: www.joemeek.com
