Powersoft’s X Series combines power amplification with channel routing, using universal mono, bi-phase and three-phase balancing power supply, and DSP control.

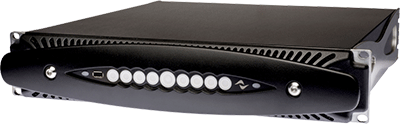

The X Series comprises the X8, the largest amplifier in the range with eight channels in a 2U-high chassis, and the X4, which features four channels in a single rack unit. Both models share the same power density, being capable of delivering up to 5.2kW @ 2Ω/channel. The X Series natively supports AES3, two redundant Dante by Audinate digital streams and analogue inputs, providing up to four different selectable input sources per channel.

Suitable for both low- and high-impedance applications, the Powersoft X8 and X4 are suted to both concert touring and fixed installations. Their modular construction permits the rear input/output connections to provide either XLR/speakOn or Phoenix connectors, depending on the requirement of the specific application.

Power management uses low-latency DSP, providing high-quality signal processing and a routing and mixing of the input/output channels. Signal management and processing architecture is composed of six separate sections: Input source selection; Input processing; Matrix; Pre-output processing; Speaker routing; Output processing.

The set-up parameters of the Powersoft X Series are integrated into Armonía Pro Audio Suite software, which offers an interface for parameter adjustment, control over the digital audio processing and real-time monitoring of system performance. An integrated Wi-Fi connection permits the Powersoft X Series to be accessed and managed via any smartphone or tablet through a user interface specifically developed for local monitoring.

Powersoft’s power supply is now suitable for single-phase, bi-phase or three-phase operation from 85V AC up to 440V AC without the need for manual selection.

More: www.powersoft-audio.com
