Calrec Audio has announced its ability to simultaneously interface with multiple protocols, offering ‘unique and comprehensive flexibility’ across various audio and video standards.
The support includes the release of an AES67/Ravenna interface, an AVB interface, and a modular I/O Dante card that also has AES67 compatibility. In addition, Calrec has announced a SMPTE 2022-6 video interface.
‘We’re drawing a line in the sand with these products,’ says Calrec VP of Sales, Dave Letson. ‘We had held back on public-ally stating Calrec’s formal direction on AoIP until we had properly assessed the market and talked to our customers. We strongly feel that it is not the role of a manufacturer to dictate which route to take, but to facilitate the broadcasters’ choices.
‘Customers can now interface with multiple protocols at the same time. For example, a signal can be received via AES67 and then sent out via SMPTE 2022, AVB, Ravenna, Dante or AES67. Signal processing takes place via modular cards or 1U boxes.
‘Each signal also benefits from the management facilities inherent in Hydra2. This benefit is especially powerful in remote environments where multiple trucks are connected. It means that different units can operate across multiple formats in the field, and Calrec always has them covered.’
Each element of Calrec’s protocol range redundantly connects to Hydra2 and appears as any other I/O resource on the Hydra2 network. Hydra2’s integral suite of management tools provides additional benefits to allow remote configuration patching, port protection, alias files, virtual patchbays, and access rights.
The AES67/Ravenna and AVB interfaces are 1U-high boxes that can transport 256 channels of audio on a single connection. A second expansion card provides the unit with 512 channels of audio — one of the highest-bandwidth connections available for either protocol. The box is so versatile that it can even accommodate one of each card, allowing simultaneous operation of multiple formats.
The SMPTE 2022 modular I/O card has a 10GB port that can receive up to four SD, HD, or 3G video streams, de-embedding 16 audio channels from each. Each video stream may be retransmitted intact, or with new embedded audio. A secondary 10GB port provides for hitless switching, as defined by SMPTE 2022-7.

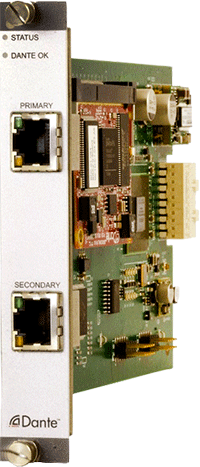

Calrec’s existing Dante modular I/O card (launched at IBC 2014) uses Audinate’s Brooklyn II card and now offers AES67 support as standard. This combination allows access to up to 64 bidirectional channels in either protocol.
