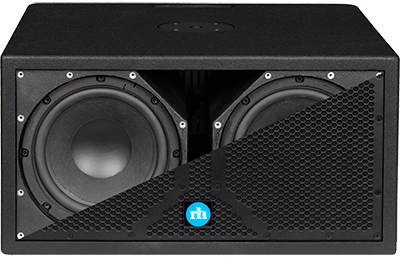

Renkus-Heinz has added the SX/SA28 to its S Series Subwoofer line – an extremely compact, low-profile subwoofer that extends overall system frequency response to below 45Hz, in an efficient design that provides output levels normally associated with larger enclosures.
The SX/SA28 is designed to extend low-frequency response and increase system headroom in conjunction with Renkus-Heinz full range loudspeakers, such as the Iconyx and ICC Series.
Available in both passive (SX28) and powered (SA28) models, use a pair of long-excursion, high-efficiency 200mm (8-inch) drivers mounted in a compact and sturdy, black or white painted plywood cabinet. The compact dimensions and low profile allow the new subwoofer to be positioned under seating, under low stages, soffits and be incorporated into fixed furnishings. This offers flexibility to the designer and integrator without compromising system performance. In addition, multiple units can be arranged to create cardioid, end-fire, and steered low frequency arrays.
The optional SA1250 power amplifier precisely matches the power needs of the SA28, providing optimized processing for performance and protection. The integral amplifier eliminates the need for additional rack space and speaker cable runs. Controlled via Rhaon II, the SA1250’s DSP has eight fully-parametric EQ filters, high and low shelf and high-pass and low-pass filters, and up to 358 ms. of delay. All options are easily accessed via a Windows computer running Rhaon II.
Sixteen M10 Universal Mounting Points allow the SX/SA28 to be flown using M10 eyebolts, while the recessed handles and top-mounted pole adapter make portable use easy and practical. Integrated rear cable channels allow for discrete installations even when flush to a boundary.
‘The performance of the SX/SA28 belie its extremely compact dimensions,’ says Renkus-Heinz Vice President of Strategic Development, Graham Hendry. ‘The addition of the SX/SA28 allows for flexible and discreet placement in a variety of install and portable scenarios. This is another new solution Renkus-Heinz has introduced this year to make the lives of those in the live sound and installation markets easier through compact and impressive loudspeakers.’
The SA28-RD1 and SA128-RD add Dante digital signal distribution capability, including AES67 compatibility and network redundancy.
